Loading 50t Semi Cargo Trailer Double Function For Long Distance Transportation
Sinotruk 3 Axles Cargo Semi Trailer Loading 50t Double Function Container Semi trailer and Bulk Cargo Trailer
Quick look of 3 Axles Cargo Semi Trailer
Brand Name: Sinotruk
Size: 13000*2500*2860mm
Type: Cargo Semi-Trailer
Max Payload: 50T
color: Optional
Axles: Guangdong Fuwa axles
Tyre: Triangle brand
locks: 12 pices or 8 pices
hight of breast board: 600mm
support legs: JOST
Light: LED
Kin pin: 50# or 90#
material: steel
emergency valve: WBCO
number of tool: one or more
Advantages of 3 Axles Cargo Semi Trailer
The side wall semi-trailer is installed with fences on the working platform. With wide usage, it’s basically used for medium and long-distance transportation of medium and heavy goods as well as bulk cargo. We can also install additional container locks or detachable columns according to customers’ special requirements, so it can be used for container transportation or timber transportation. With strong applicability, it is the first choice for medium and long distance transportation.
The height is 400-1200mm for your choose. Weld by automatic corrugated plate welding robot, the quality is good, the welded seam is beautiful, the side wall strong and durable.
Technical Specification of 3 Axles Cargo Semi Trailer:
| Gross Weight | About 7.5 tons |
| Outer side dimension(mm) | 13000 × 2500 × 2850 |
| Loading Capacity (Ton) | ≤ 50T |
| AXLES | 13 T /PER, 3axles FUWA Brand, |
| Tire | 12.00R22.5, 13pieces Triangle or double coin brand |
| Rim | 9.00-22.5, 13pieces China Brand |
| Suspension | Mechanical suspension (America Type) |
| Spring leaf | 90(W)mm*13(Thickness)mm *10pices, heavy duty type |
| King pin | JOST brand 2.0 or 3.5 inch bolts type |
| Support leg | 28T or JOST brand E100 |
| Main Beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm,
down plate is 16mm ; Material is Q345B Steel . |
| Plateform | 3mm diamond plate steel |
| Side beam | 16# channel steel |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tank |
| Fuel tank | 1000L |
| Hooks | With |
| Twist Locks | 12 pieces (Lifting type) |
| Valve | WABCO valve |
| ABS | Without |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking
bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms | Transport by RORO or 45FT container. |
Advantages of 3 Axles Cargo Semi Trailer

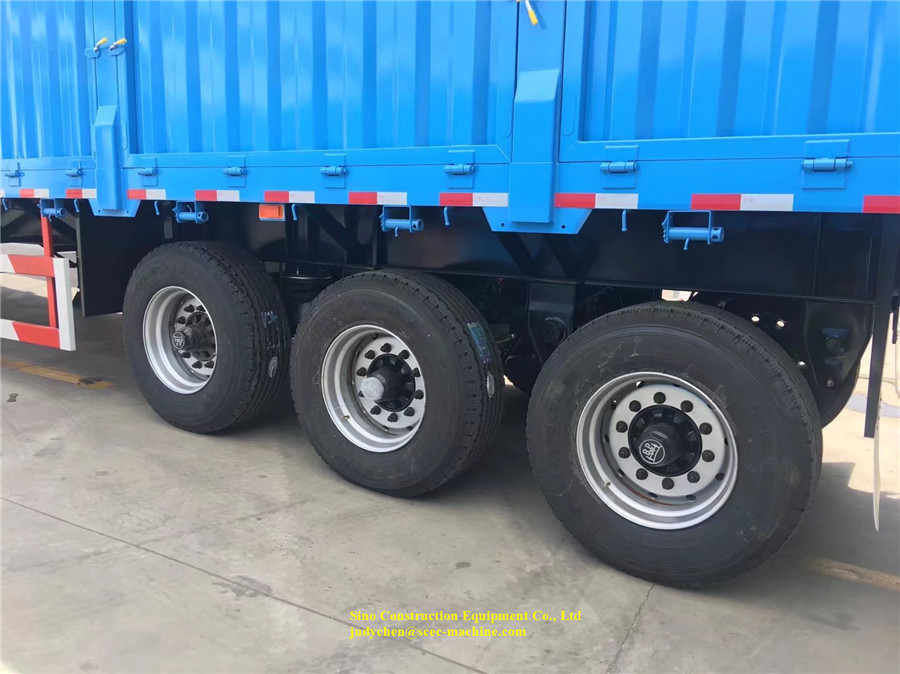

- Axles
Fuwa brand axles, the best brand in China, good quality and durable.
The common type is 13t, you can choose the axle’s number and tons according to loading capacity of the trailer. BPW brand is available too.
- Suspension
50#. Thickness is 6mm, the matched spring leaf is 10 layers or 4 layers.
- The main beam
Cutting by laser cutter and welding by laser positioning air suspension is available too. Welding machine, good quality and the welded seam is beautiful. The height and thickness are designed, by loading capacity of the trailer and road condition.
- Landing gear
28t. there are double speed single speed for your choice. JOST, FUWA.
- Painting
Electrophoretic primer and powder spray, the paint surface is clean and smooth, ensuring that each part has paint, and no rust water will be produced in the later stage.
After-sales Service:
Our grantee term is 6 months. We will sent the engineer for mending the semi trailer for free within the six month , but you should pay the air-ticket fees go and back , and supply the food and room in your country .In our experience, the mending situation never happens before.
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers’ benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
