Sinotruk Howo 6x4 25cbm Heavy Duty Dump Truck 336hp Tipper Truck for Loading Sand, Stone and Mud
Quick look of Sinotruk Howo 6x4 25cbm Heavy Duty Dump Truck 336hp Tipper Truck for Loading Sand, Stone and Mud
Drive Wheel: 6x4
Capacity (Load): 21 - 30t
Horsepower:336hp
Transmission Type: Manual
Emission Standard: Euro 2
Fuel Type: Diesel
Engine Capacity: 9.726L
Gross Vehicle Weight: 25000
Model Number: ZZ3257N3647A
Dimensions (L x W x H) (mm): 8214x2496x3386
Front axle: HF7
Rear axle: HC16
Transmission: HW19710
Fuel tank capacity: 300L
Max speed: 75
Tyre: 12.00R20
Cargo body size: 5400x2300x1200
Cab: HW76
Technical sheet of Sinotruk Howo 6x4 25cbm Heavy Duty Dump Truck 336hp Tipper Truck
| Truck Model | ZZ3257N3647A |
| Truck Brand | SINOTRUK –HOWO |
| Drive Type | Right hand drive |
| Dimension(Lx W xH)(unloaded)(mm) | 8214x2496x3386 |
| Cargo body size (L*W*H, mm)(mm) | 5400x2300x1200 |
| Cargo body thickness(mm) | bottom:8mm, side:6mm, |
| Lift type of Carriage | Ventral lifting |
| Approaching angle/Departure angle(°) | 19/26 |
| Overhang(front/rear) (mm) | 1500/1739 |
| Wheel base (mm) | 3625+1350 |
| Max speed(km/h) | 75 |
| Curb weight(kg) | 12290 |
| Loading Weight(kg) | 30000 |
| Fuel tanker capacity | 300L with locking fuel cap |
| Fuel consumption(L/100km) | 32 |
| Clutch | Single-plate dry clutch Φ420mm |
| Engine | Model | WD615.69 |
| Horse Power, max(kw/rpm) | 366hp |
| Emission Standard | EURO III |
| Transmission | Model | HW 19710,10 forwards and 2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheel |
| Auxiliary brake | Engine exhaust brake |
| Steering system | Model | hydraulic steering with power assistance |
| Front axle | HF9 Loading capacity:9000KG |
| Rear axle | HC16, Loading capacity:16000KG |
| Color | Optional |
| Tire | 12.00R20 11 pieces |
| Electrical system | Operating voltage | 24V,negative grounded |
| Starter | 24V,7.35KW |
| Alternator | 28V,1500W |
| Batteries | 2*12V.165Ah |
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. |
| Cab | HW76 cab, one sleeper,with air-condition |
Our Services
1. Reply your inquiry in 12 working hours;
2. Experienced staffs answer all your questions;
3. Customer’s design is available for certain products(OEM);
4. Spare parts for all types of engine machinery with reasonable price;
5. Different kinds of semi trailer can be provided with competitive price.
We Will Check Again Before delivery or Shipping. We must guarantee our trucks or trailers perfect and pictures will taken and sent to our customers.
Product Tags:
|
|

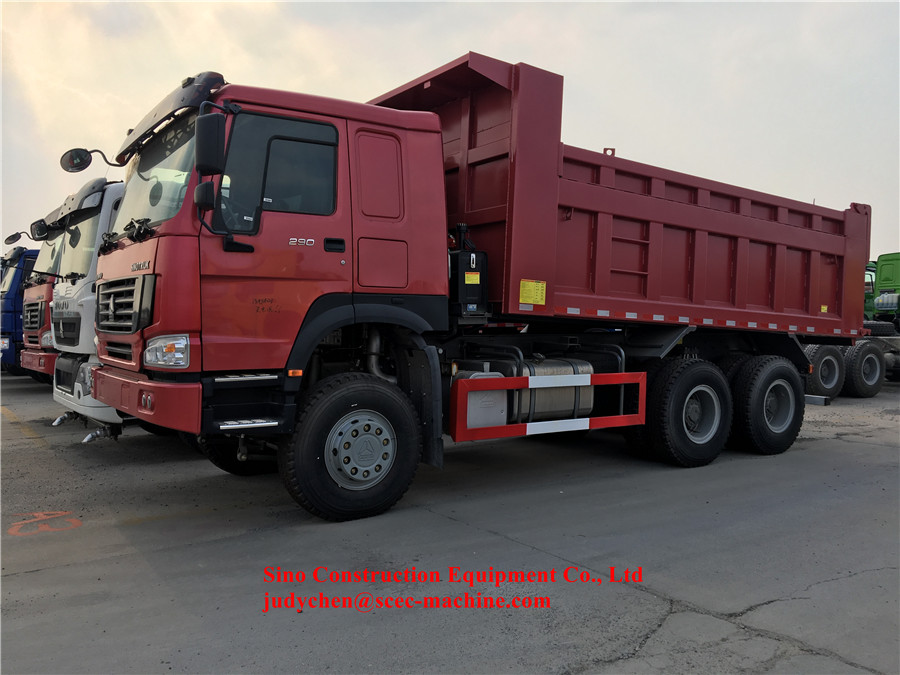

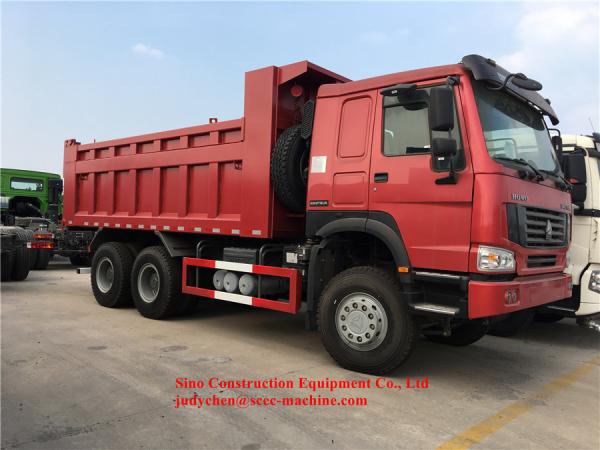

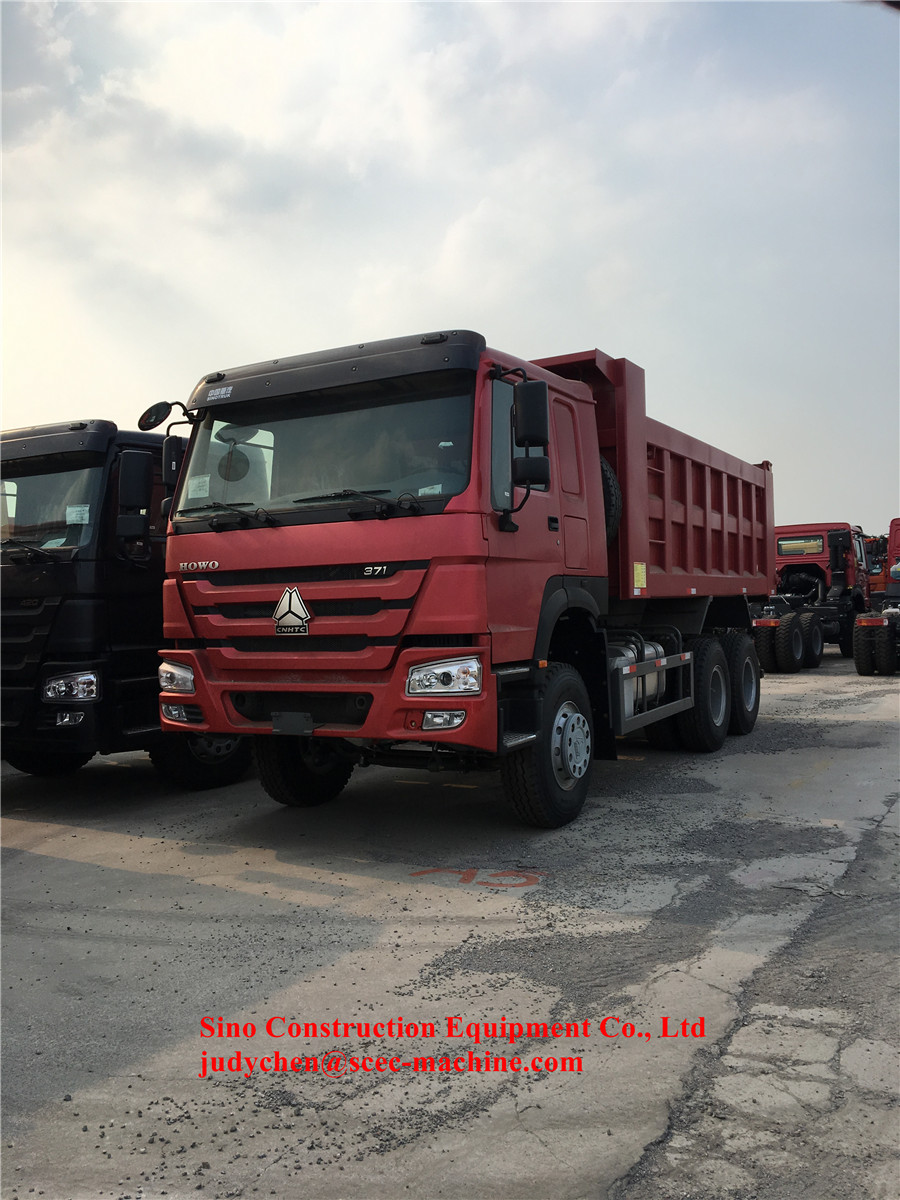

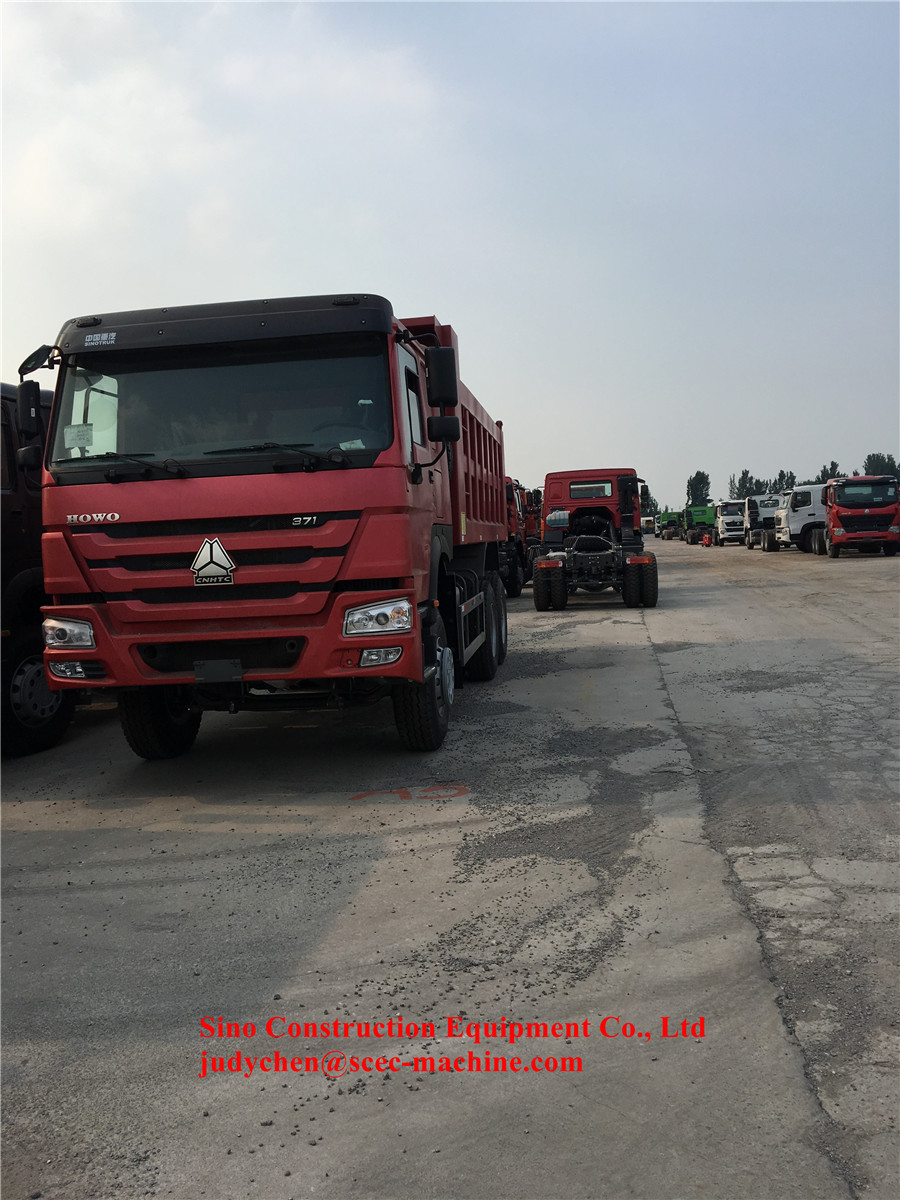

Howo 6x4 Heavy Duty Dump Truck Images
|
