2020 New Model XCMG Road Construction Machines 1.3m Cold Milling Machine XM1303K
● National III emission EFI engine, with higher power and stronger power; green construction, reducing environmental pollution; lower fuel consumption and more economical use.
●1.3m Cold Milling Machine XM1303K has a power self-adaptive function, which can automatically adjust the speed according to the working conditions to maximize the work efficiency.
● With large milling depth, the entire asphalt concrete pavement can be removed at one time; it is more convenient to handle ruts.
● 1.3m Cold Milling Machine XM1303K uses a mechanical belt to drive the milling drum, which has a higher transmission efficiency than hydraulic transmission.
● The mechanical folding conveying device is easy to operate and more convenient for transfer and transportation.
● 1.3m Cold Milling Machine XM1303K adopts four-wheel full hydraulic running system, which can provide strong traction.
● Strong climbing ability, you can climb the flatbed truck by yourself, saving the lifting cost.
● The hydraulic diversion differential speed system is adopted to enable the machine to pass smoothly in harsh road conditions.
● The ergonomically designed control system is easy to operate and reduces fatigue from long-term operation.
Technical specifications:
| Item | Unit | XM1303K |
| Milling drum | Milling drum Milling width | mm | 1300 |
| Milling depth | mm | 300 |
| Tool spacing | mm | 15 |
| Number of tools | | 119 |
| Rotor diameter with tool | mm | 930 |
| Engine | Model | | SC9DK240G3 |
| Cooling method Water cooling | | Water cooling |
| Number of cylinders | | 6 |
| Rated power/speed | kW | 177 |
| Displacement | L | 8.8 |
| Rated power consumption | L | 40 |
| Comprehensive fuel consumption | L | 13.3 |
| Emission Standard | | National Ⅲ |
| Electrical system | V | 24 |
| Box capacity | Box capacity Fuel tank | L | 450 |
| Hydraulic oil tank | L | 130 |
| Water tank | L | 860 |
| Driving performance | Driving performance Maximum operating speed | m/min | 45 |
| Maximum speed | km/h | 8 |
| Theoretical climbing ability | % | 75 |
| Ground clearance | mm | 180 |
| Tire | Tire Tire Form Solid Rubber Tire | | Solid Rubber Tire |
| Front tire size | mm | 645×300 |
| Rear tire size | mm | 645×300 |
| Milling material conveying | Milling material conveyor Belt width | mm | 500 |
| Theoretical feeding capacity | m3/h | 127 |
| Transport size | Shipping Size Host Size (L×W×H) | mm | 4837×2846×3745 |
| Host size (right leg swings into the frame) (L×W×H) | mm | 4837×2357×3745 |
| Folding conveyor size | mm | 7300×1085×980 |
| Machine weight | Machine Quality Work | kg | 17500 |
| Front axle load (under working quality) | kg | 6000 |
| Rear axle load (under working quality) | kg | 11500 |
Product Tags:
|
|

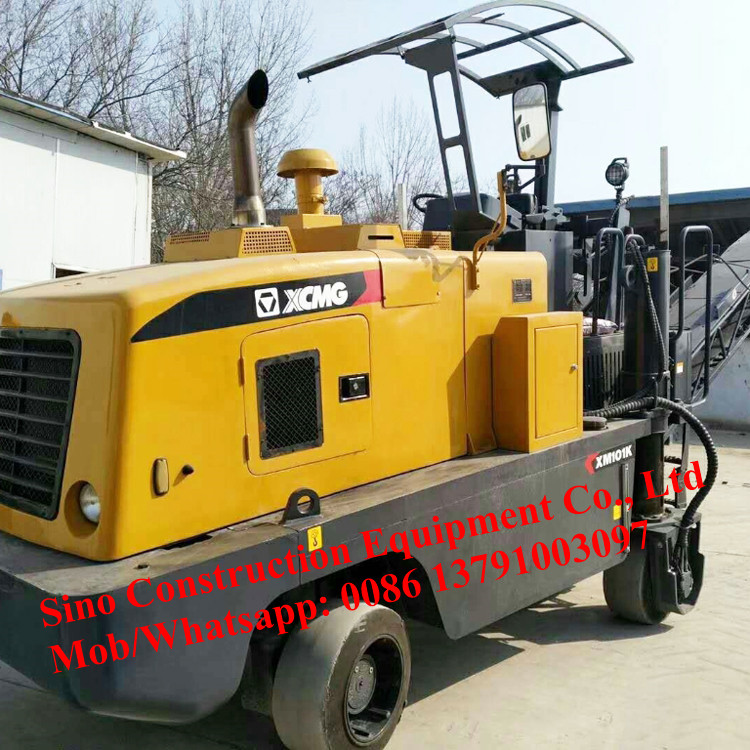

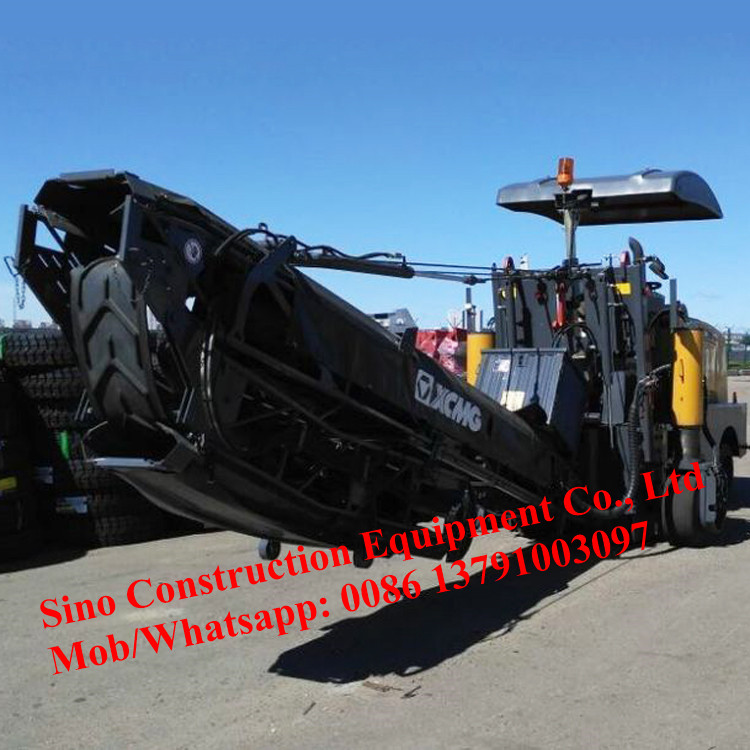

1300mm XM1303K XCMG Road Construction Machines Images
|
