10Tons Diesel Forklift With Optional Engine CPCD100
Product Description of 10Tons Diesel Forklift With Optional Engine
Advantages
1. Imported alternator and separately driving motor providing with excellent acceleration quality and grade ability.
2. Wide vision mast optimizes the structure of mast and widens the scope of the operator's vison.
3. Fully embodying man-machine engineering ideology, all the operation systems are of good distribution, which improves comfort of the operating and reduces the drives intensity of labor.
4. Low noise, pollution, safety, stability.
Technical Parameters of 10Tons Diesel Forklift With Optional Engine
| model | | CPCD50 | CPCD60 | CPCD70 | CPCD85 | CPCD100 |
| Power type | | Diesel |
| Load capacity | kg | 5000 | 6000 | 7000 | 8500 | 10000 |
| Load center | mm | 600 |
| Pallet fork maximum height (with block shelf) | mm | 4400 | 4400 | 4400 | 4420 | 4217 |
| Maximum lifting height | mm | 3000 |
| Free hoisting height | mm | 200 |
| Overall height (upper frame protection) | mm | 2450 | 2450 | 2450 | 2560 | 2560 |
| Full length (with cargo fork) | mm | 4710 | 4790 | 4840 | 5180 | 5430 |
| Full width | mm | 2045 | 2045 | 2045 | 2165 | 2165 |
| The minimum ground clearance (the door) | mm | 200 | 200 | 200 | 250 | 250 |
| The minimum turning radius (outer) | mm | 3240 | 3300 | 3370 | 3650 | 3900 |
| Least square channel width | mm | 3200 | 3260 | 3330 | 3590 | 3860 |
| Pallet fork a*b*c | mm | 1220*150*55 | 1220*150*60 | 1220*150*65 | 1220*170*70 | 1220*175*80 |
| Maximum speed (full/empty) | km/h | 24/29 | 24/28 |
| Maximum traction(full/empty) | KN | 63 | 63 | 62 | 60 | 58 |
| Maximum gradeability (full/empty) | % | 38/19 | 35/19 | 32/19 | 23/20 | 21/20 |
| Tire type (before/after) | | 2/2 |
| Engine manufacturers/models | | CA6110 |
| Rated power | KW/rpm | 83/2000 |
| Rated torque | Nm/rpm | 450/1400-1500 |
| Total water (oil) | kg | 8300 | 9050 | 9650 | 1150 | 12660 |

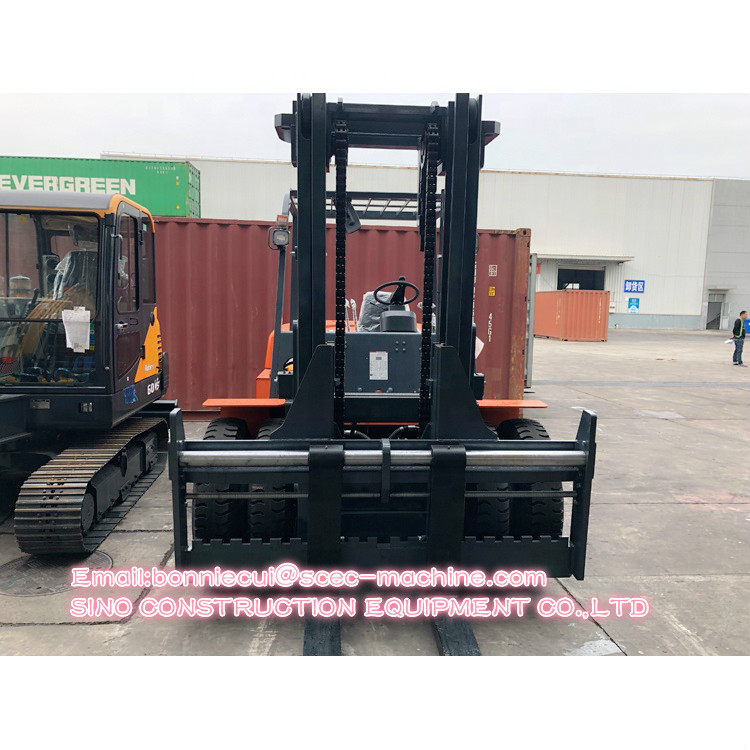

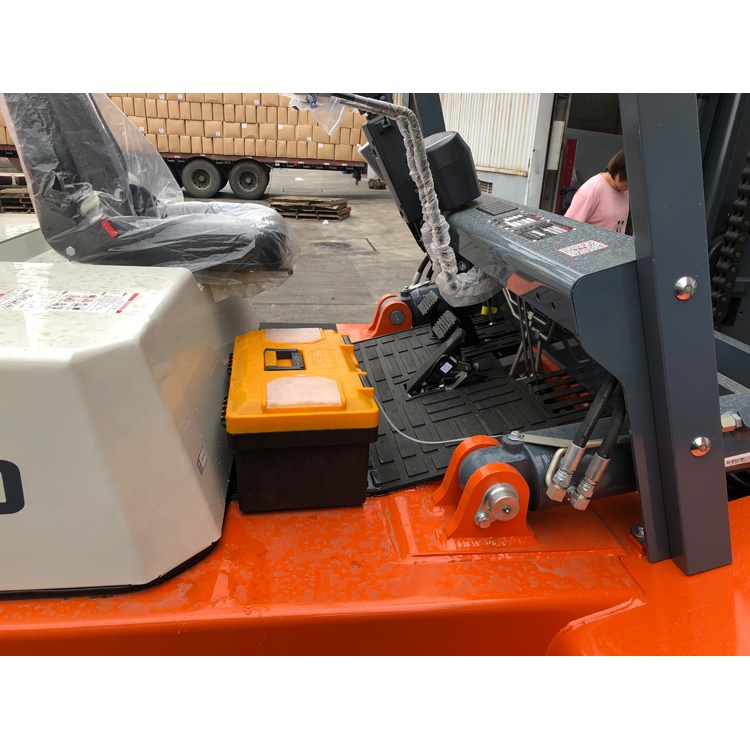

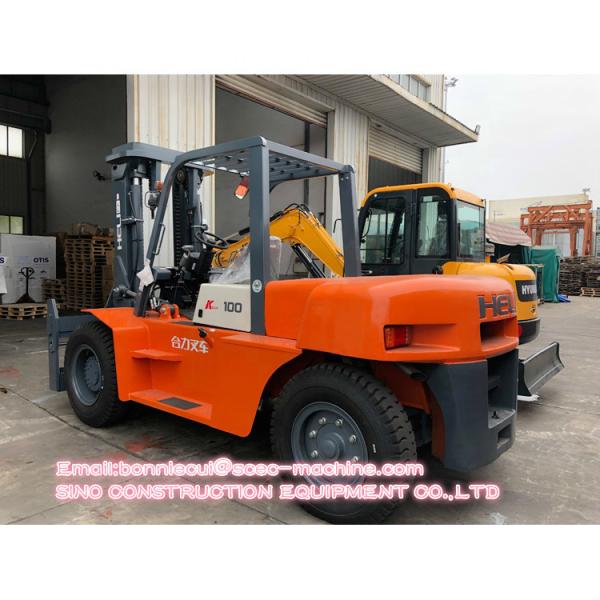

The photo of 10Tons Diesel Forklift With Optional Engine
