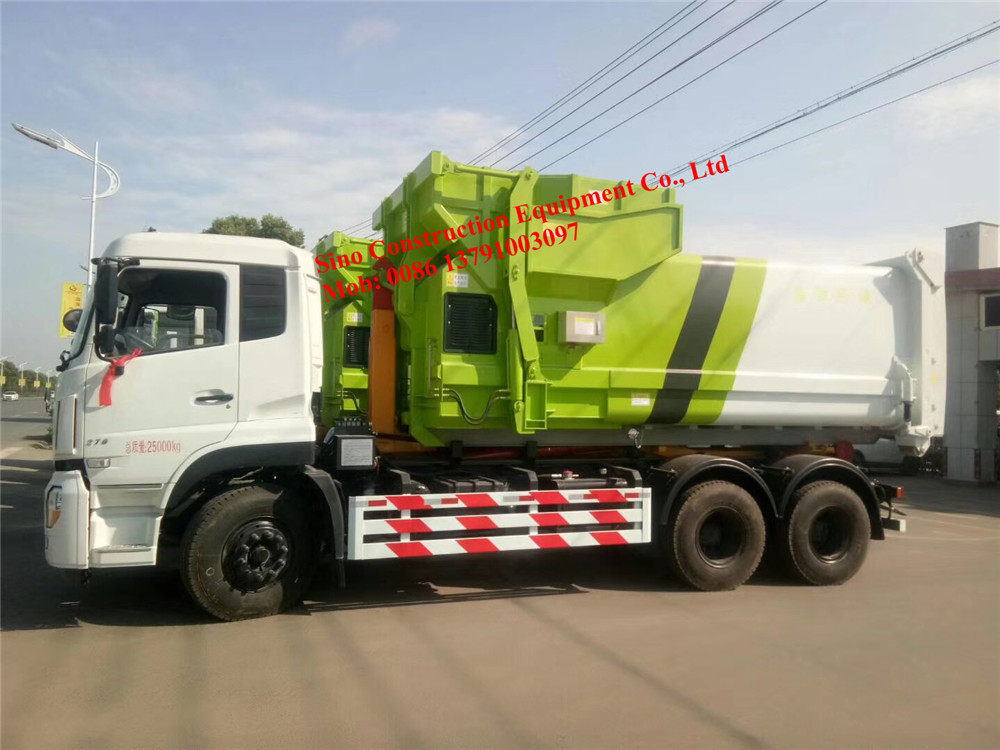

SCEC 25ton Hook Arm Garbage Truck 20-20m3 Hook-Arm Garbage Truck
Introduction of SCEC 25ton Hook Arm Garbage Truck 20-20m3 Hook-Arm Garbage Truck

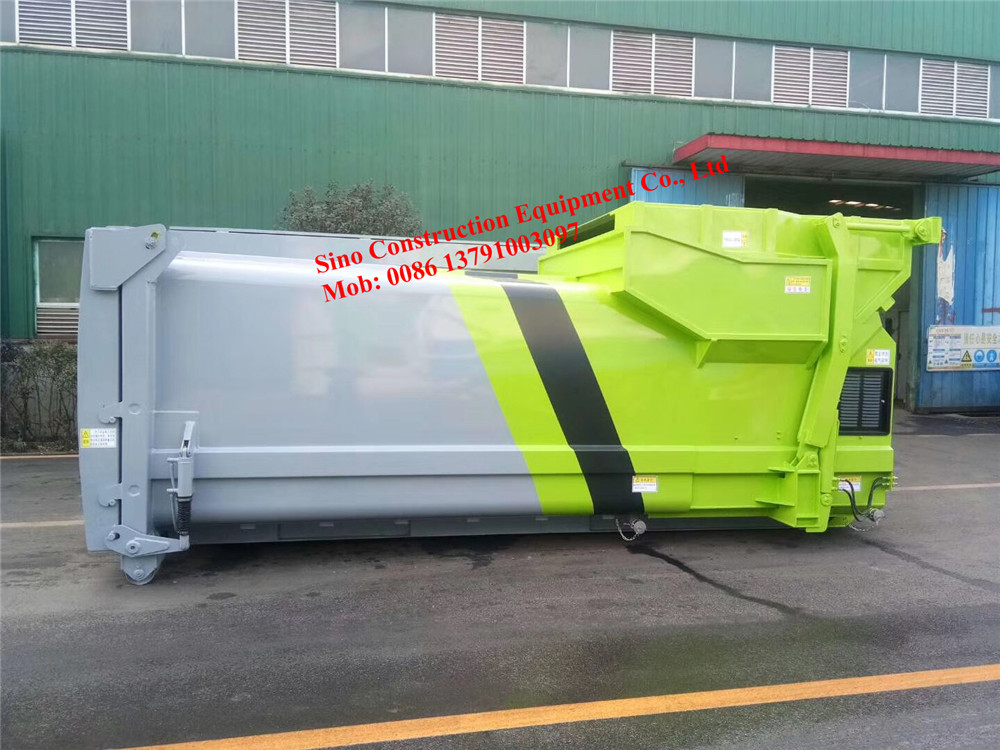

The cab is a full-floating hydraulic shock absorber and airbag seat. Comfortable driving; the gearbox is Sinotruk ten-speed transmission, with few failures and excellent performance. The rear double bridge is a 10 ton reinforced type, with fast speed and strong bearing capacity. The pull arm adopts our company's independent design and owns independent intellectual property rights of OVO brand 25 tons telescopic sleeve arm. The company patented the production of hydraulic double cylinder (cylinder diameter 160), Honghui technology electric control multi-way valve, Italy PZB ( Interpac) high-pressure plunger pump. Standard rear roller support, wireless remote control + manual operation, reserved flat hydraulic quick connector (interview) interface for trash bin, can be equipped with 20-28 square multi-functional bulk trash bin (hydraulic wingspan cover, hydraulic locking seal) Rear door) or 18-20 square conjoined compression box (mobile garbage station).
Technical specification of SCEC 25ton Hook Arm Garbage Truck 20-20m3 Hook-Arm Garbage Truck
| Model | ZZ1257N4341W |
| Cabin | HW76 Long Cabin, with two seats and one bed, with Air Conditioner and electric window. |
| Engine | Model | WD615.69 |
| Horse Power (Hp/rpm) | 336/2200, Euro II Emission Standard |
| Max.Toruqe(Nm/rpm) | 1350/1100-1600 |
| Displacement L | 9.726 |
| Type | 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine |
| Transmission | HW19710, 10 speeds forward and 2 speeds reverse. |
| Front Axle | HF9, Steering with double T-cross section beam, Loading Capacity: 9,000kgs |
| Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42 |
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer |
| Steering System | ZF8118, Hydraulic steering with power assistance |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake |
| Tire | 12.00R20 |
| Fuel Tank Capacity (L) | 300L Diesel Tank |
| Kurb Weight (kg) | 12,000 |
| Loading Capacity (kg) | 25,000 |
| Gross Vehicle Weight (kg) | 41,000 |
| Overall Dimension(L*W*H)(mm) | 9800×2500×3210 |
| Garbage Tank Capacity size | 7000x2300x1500mm/23cbm |
| Tank Material | Carbon Steel, 3mm-5mm thickness |
| Nos of Compartment | 1 |
| Wheelbase(mm) | 4325+1350 |
| Max. Speed (km/h) | 90 |
Features of SCEC 25ton Hook Arm Garbage Truck 20-20m3 Hook-Arm Garbage Truck
1. Interlock protection: OVO arm is equipped with electronic anti-error protection. Sequential actions are related to interlocking to prevent hydraulic or mechanical failure caused by misoperation, eliminate hidden safety hazards and extend service life;
2. The structural parts of the tension arm are made of high-strength steel (510,610), with local special treatment, strong bearing capacity and not easy to deform.
3.The upper body of the pull arm is polished and derusted, and multiple processes are painted to ensure that the appearance and color meet the requirements; the upper arm assembly of the pull arm has passed the bench test and heavy load price test to ensure the quality!
FAQ
1.Does your company is a factory or trade company?
We have a factory,we are on this business for f15 years in China. Our factory is very famous in the Shandong China.
2.Whats the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3. What’s your MOQ?
One unit.
4. How do you transport the trucks?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
bulk or container.
5. Can you satisfy my special requirement?
Yes, We are direct manufacturer and we have strong producing capacity and R&D capacity!
Product Tags:
|
|

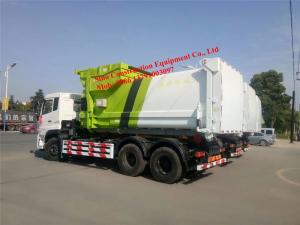

SCEC 25 Ton Hook Arm Garbage Truck Images
|
