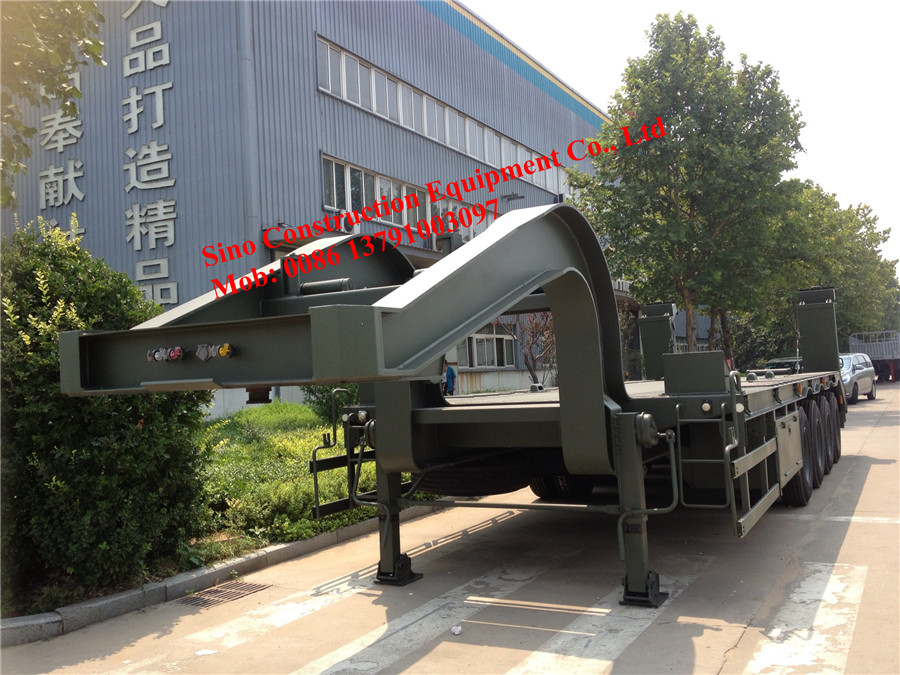

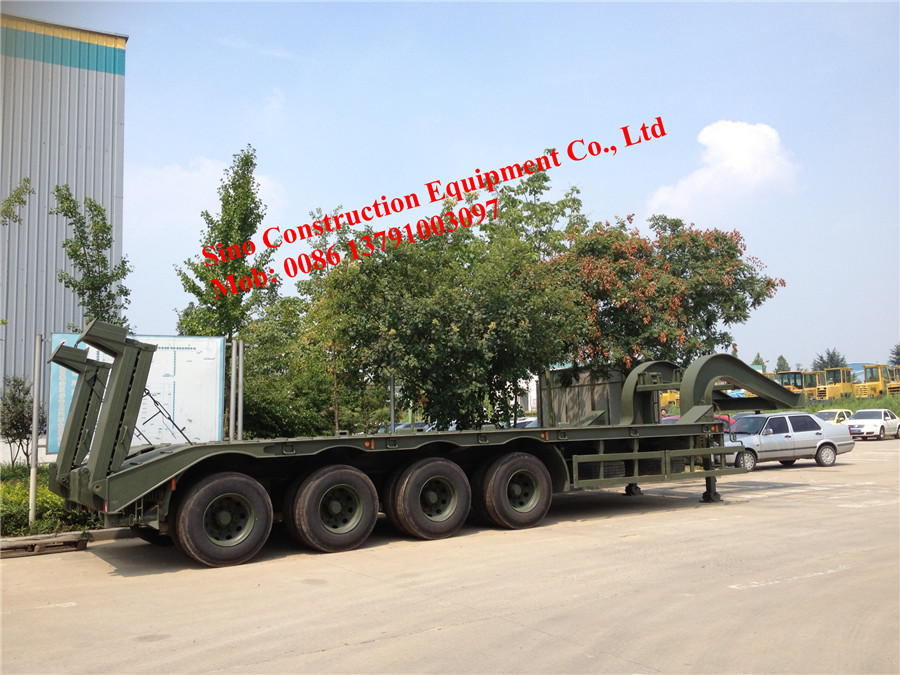

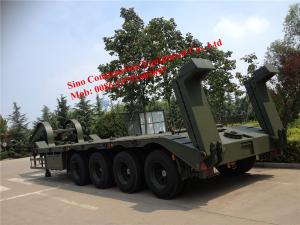

SCEC Heavy Duty Semi Trailers 120ton Low-bed Semi Trailer
Technical specification of SCEC Heavy Duty Semi Trailers 120ton Low-bed Semi Trailer
| Trailer Model | 4 Axles 16 Tires 120 Ton Low Bed Semi Trailer |
| Dimension(Lx W x H)(mm) | 13500 x 3000 x 1650 |
| Curb Weight(KG) | 11000 |
| Loading Weight( KG) | 120000 |
| Departure Angle | 16 |
| Axle Brand | 13TON Axle FUWA Brand |
| Axle Number | 4 |
| Suspension system | Mechanical suspension |
| Gooseneck and Ladders | Commen |
| Steel Spring | 10/10/10 |

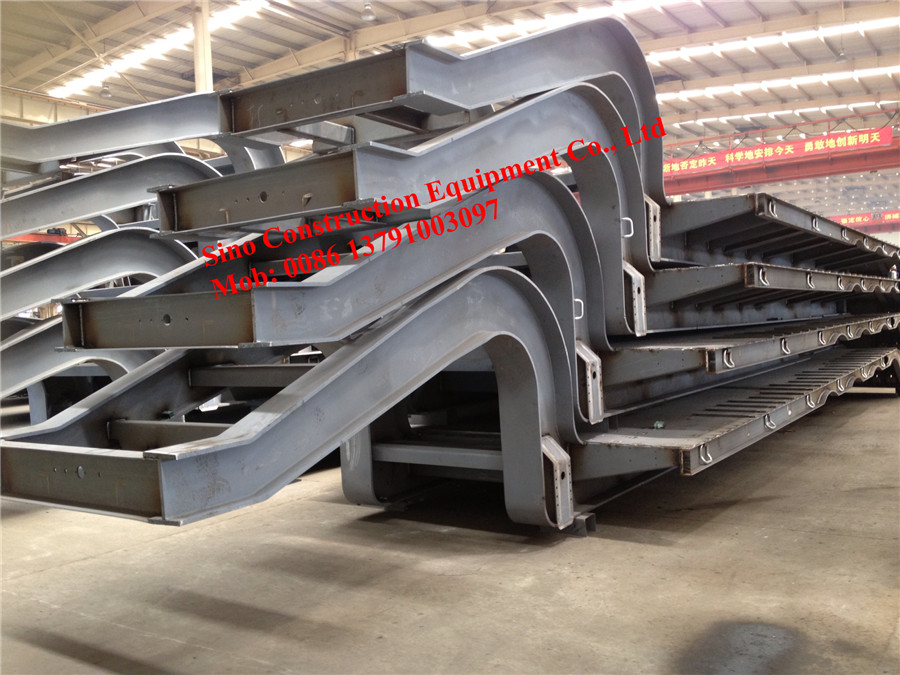

| Frame | The height of the beam is 500mm, upper plate is 16mm, down plate is 18mm, middle plate is 10mm. |
| Platform plate | 6mm Diamond Plate |
| Tire Type and quantity | 12R22.5 12units Chinese brand |
| Traction Pin | 50mm or 90mm JOST brand |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 1 Unit |

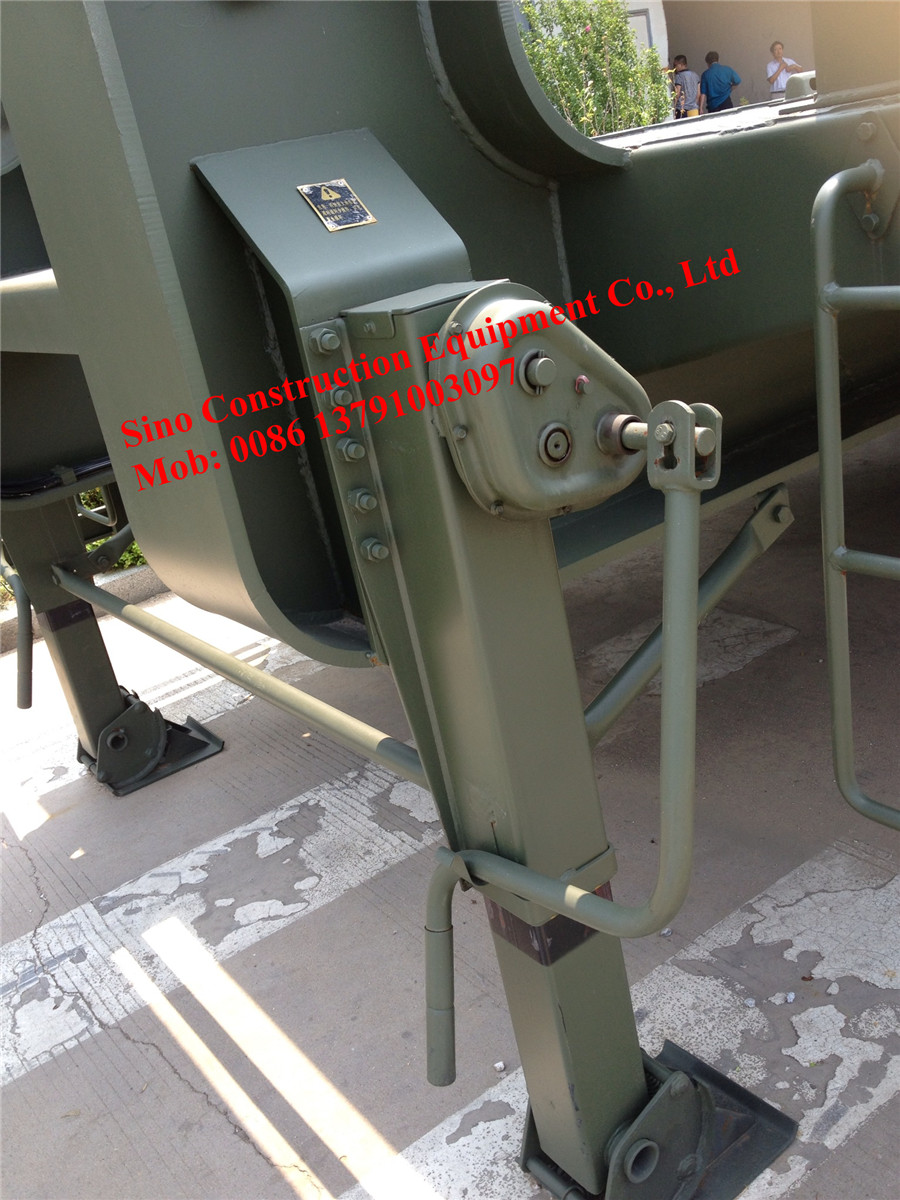

| Landing Leg | JOST 28T load landing leg |
| Brake system | Dual Line braking system (ABS optional) |
| Brake air chamber | 6 big air chambers |
| Electrical system | 24V,7 Pole plug Tail lamp with turn signal, brake light & reflector, side lamp etc. One set 6-core standard Cable. |
| Painting | Color by customer’s requirement |
Packaging & Shipping
- Main shipping way by Bulk Ship or RO-RO Ship:
- It can be shipped by Container. But goose back and ladder standing could be taken down; operating plate's and wheel frame's demission should not be more than 11.8m.
After sale service:
We provide customers with the most economical design according to the loading equipment and the payload.
ODM & OEM customize, professional and technical team provide you the best design , free logo print.
Trailer assembled under strict quality control, any process is inspected .
We look forward to your enquiry!
FAQ:
1. Does your company is a factory or trade company?
We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
2. What’s the quality assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3. What’s your MOQ?
One unit trailer or truck.
4. How do you transport the semi trailers and trucks?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
bulk or container.
5. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity.
