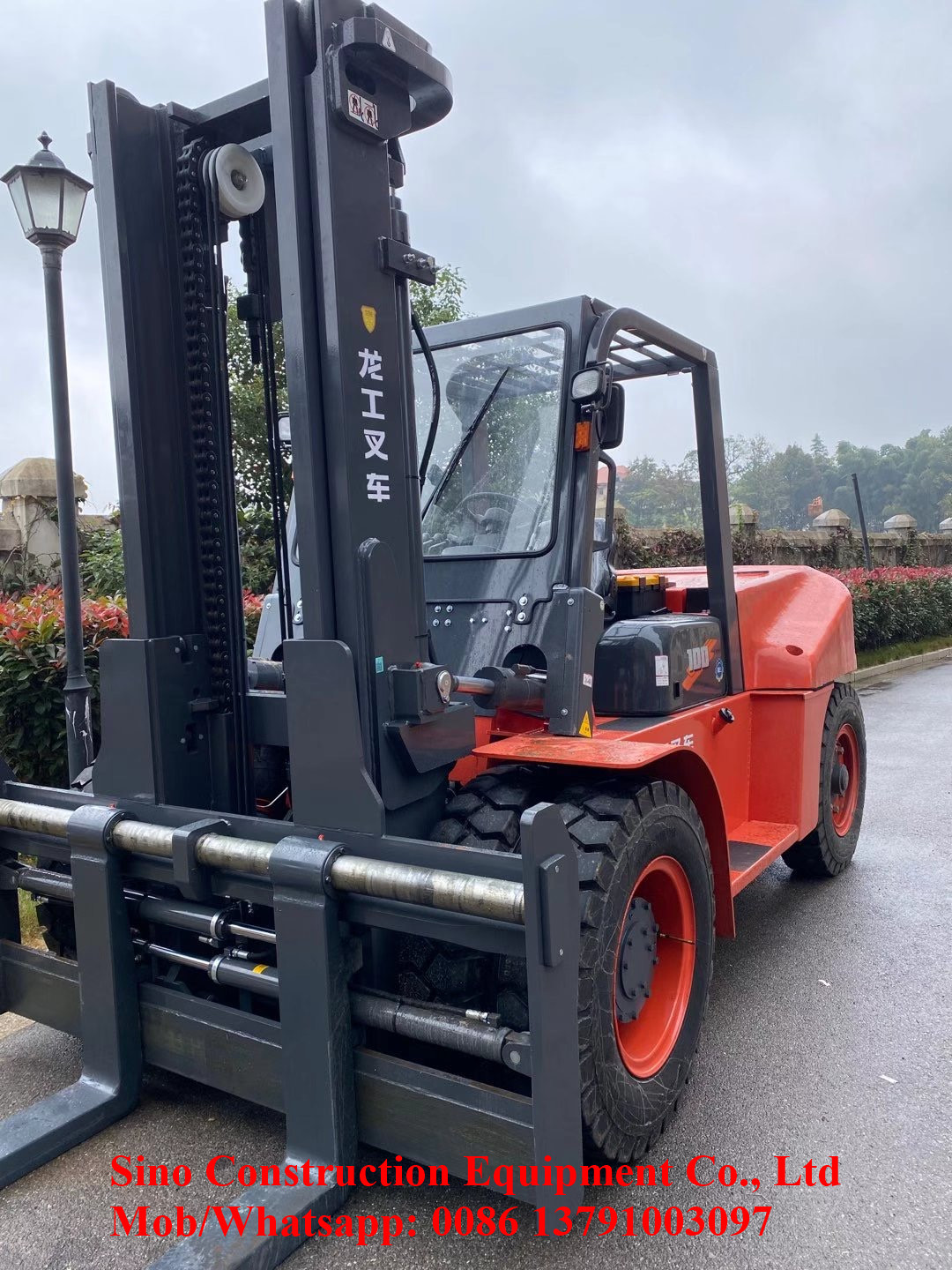

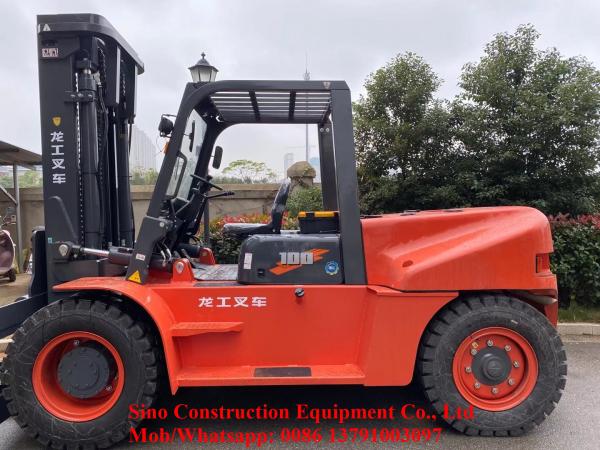

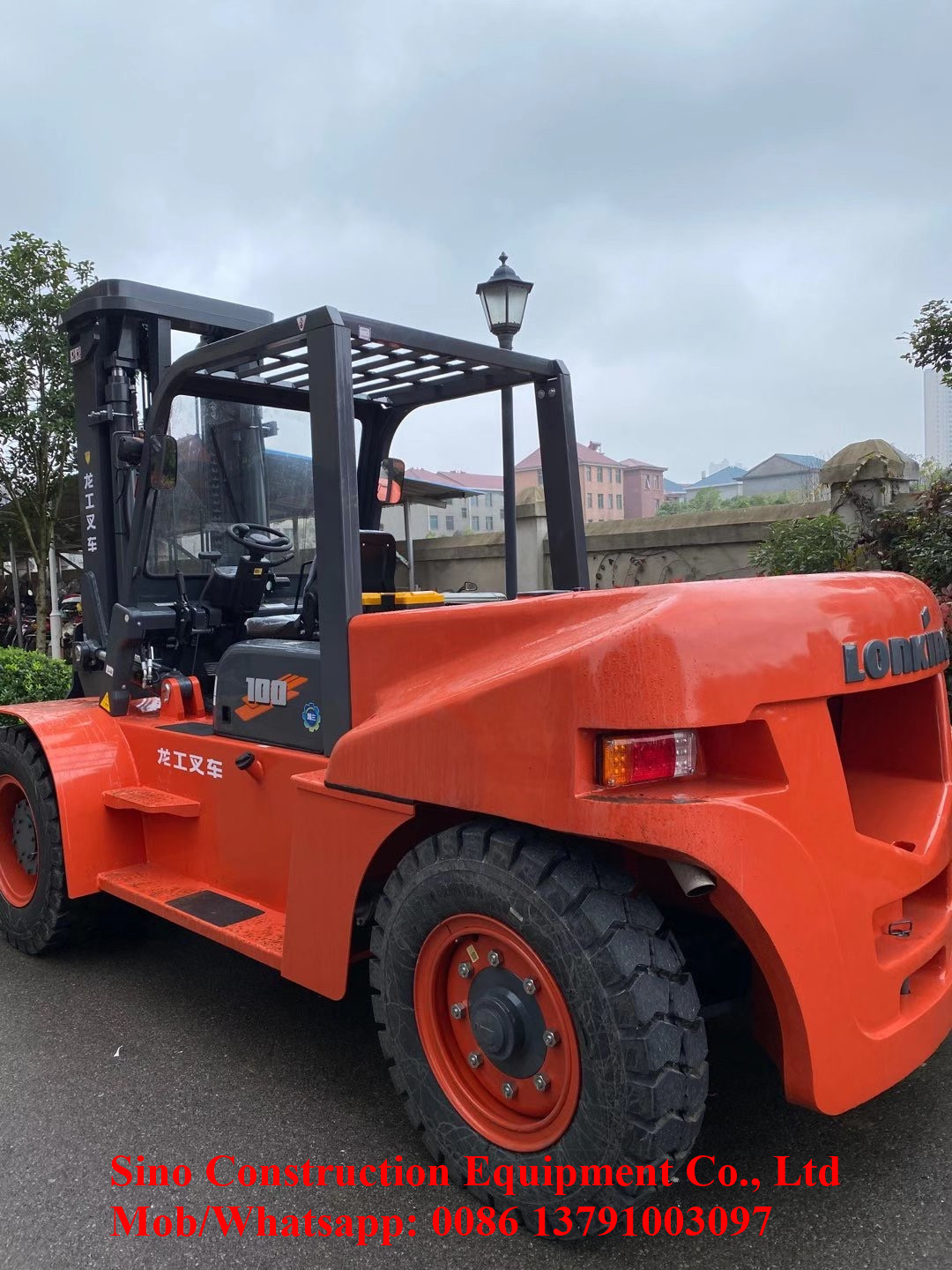

4 Cylinders 85KW Diesel Engine 10t Forklift Truck LG100DT Euro II
Features:
1. Heat dissipation: The heat dissipation system is reasonably optimized, and the cooling performance is greatly improved, thereby improving the gearbox. , Engine and other key parts reliability, Durability; energy saving and consumption reduction.
2. The 10t Forklift Truck LG100DT adopts an optimized hydraulic system (load sensing hydraulic system), which highlights energy saving and high efficiency, and effectively reduces the fuel consumption of the vehicle;
3. Comfortability: 10t Forklift Truck LG100DT adopts interactive ergonomic design to improve operating comfort; equipped with a wide-view portal system to enhance the driver's vision;
4. Intelligent reversing: standard power distribution hydraulic reversing system, operation is labor-saving and convenient; upgrade the new smart shift system to prevent the second gear from starting, improve the change
The reliability of the gearbox;
5. Maintainability: The internal space of the car body is more spacious, the parts are arranged more reasonably, the opening angle of the hood is increased to 80°, and the maintainability of the whole machine is better.
it is good;
6. Reliability: The strength of the core structural parts of the car body, mast, and hood has been greatly improved, making the whole car stronger; independent integrated electric control box, LED signal
Lamps and power switches greatly improve the reliability of the electrical system.
Technical specifications of 10t Forklift Truck LG100DT:
| Model | LG100(T)III |
| Power type | Diesel |
| Rated loading | 10000kg |
| J Center distance | 600 |
| h1 Max.lifting height | 3000 |
| h3 Free lift height | 200 |
| L5×W×T fork size | 85×1520×175 |
| Main beam tilting angle | F 6 R12 |
| L3 Front overhang | 720 |
| L4 Rear overhang | 740 |
| Outside size | L1 L | 5780 |
| W1 W | 2165 |
| h2 door frame no lift height | 2845 |
| h4 Safety frame height | 2560 |
| fork shelf height | 1345 |
| R1 Min.turning radius | 3900 |
| Minimum right-angle stacking channel | 3860 |
| width |
| Maximum travel speed | 24/28 |
| (Full load/no load) |
| Lifting speed | 330/350 |
| (No load/full load) |
| Maximum grade | 21/20 |
| (Full load/no load) |
| Tare weight | 13500 |
| Tyre | F | 9.00-20-14PR |
| R | 9.00-20-14PR |
| Wheelbase | F | 1600 |
| R | 1700 |
| L2 wheelbase | 2800 |
| Min.ground clearance | m2 door frame | 250 |
| m1 truck frame | 300 |
| Fuel tank | 160 |
| Euro III engine |
| Model | | CA4DF3-12GCG3U |
| Rated power | kW/r | 85/2200 |
| Rated torque | N·m/r | 460/1400-1500 |
| Number of cylinders | | 4 |
| Displacement | L | 4.75 |
