LW800KN 4.5m3 Wheel Loader Small Construction Machinery With 250Kw Engine

LW800KN 4.5m3 Wheel Loader Small Construction Machinery With 250Kw Engine

XCMG 4.5m3 Wheel Loader LW800KN Bucket Capacity 8t Operating Weight 28500kg With 250Kw Engine

Features of XCMG 4.5m3 Wheel Loader LW800KN Bucket Capacity 8t

LW800KN is a heavy-duty, high-efficiency 8-ton loader carefully launched by XCMG using its international development platform. This product is mature in technology and reliable in use. It has a wide customer base at home and abroad, and is widely applicable to the production organizations of major ports, mines, and logistics enterprises.

1. Scientifically matched and deeply optimized powertrain, internationally leading quality gearboxes and drive axles are more efficient and reliable.

• Long wheelbase heavy-duty design, analyzed and optimized by 3D simulation, high reliability, energy saving and high efficiency.
• Application of dual pump confluence system, hydraulic flow amplification steering, single-handle pilot operation, efficient and flexible.
• Application of pressure unloading technology, automatic unloading, reducing overflow losses and significantly improving combined traction.
• The single-row large-pitch radiator is used to completely solve the heat balance problem in various harsh environments.
• Integrated cab, large space, full field of vision, ultra-quiet, slightly supercharged, equipped with audio, air conditioning, all operating elements within reach, creating the best operating environment
• Various types of working devices, such as clamps, can be selected to meet different operating requirements.

Key parameters of XCMG 4.5m3 Wheel Loader LW800KN Bucket Capacity 8t

M achine operating weight: 28500 kg

Rated load: 8000 kg

Bucket capacity: 4.5 m³

Unloading height-45 ° unloading angle: 3400 mm

Digging force (breakout force): 260 kN

Rated power: 250 kw / rpm

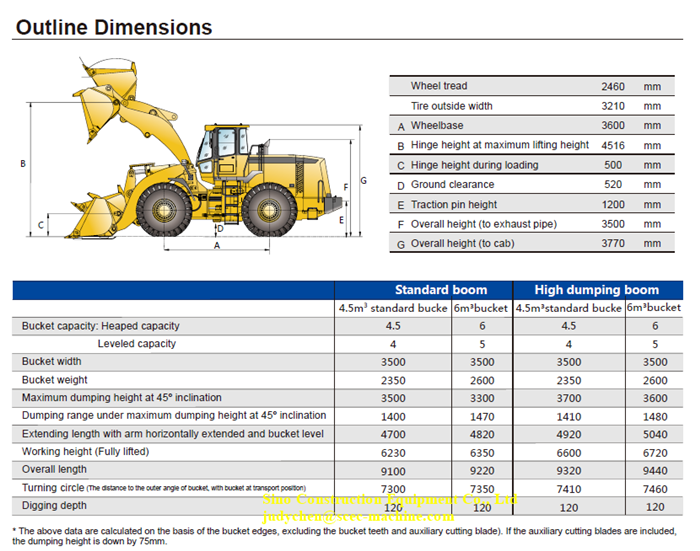

Detail Parameter of XCMG 4.5m3 Wheel Loader LW800KN Bucket Capacity 8t

Advantages of XCMG 4.5m3 Wheel Loader LW800KN Bucket Capacity 8t

1. Comfortable operation environment
New cab of large space features good sealing and wide visibility.
The cab is equipped with air conditioning, radio, cup holder and adjustable instrument panel, featuring comfortable and safe operation environment.
Electronic monitoring warning system monitors the running status of the machine accurately.
The single-handle guide hydraulic control provides easy operation for the operator.
The boom lifting limit function prevents the mechanical impact.
The electrical control gearshift control handle features accurate and easy controlling.

2. Reliable structure strength
Heavy load structure design, thick board, high strength.
The key structural parts adopt finite-element analysis to ensure the adaption to various kinds of dangerous conditions.
The frame of single board structure features high structure strength, and average stress distribution.

3. Convenient maintenance
With integrated oil filling, the service person could access to the maintenance point from the ground, featuring higher efficiency.
The side plates of the shield and rear shield are opened easily, and it is convenient to check the engine and parts, and daily maintenance.

4. Thoughtful design
The key articulated positions adopt two-stage dustproof, preventing grease overflow and dust entry and reducing the abrasion of the pin, prolonging the service life and decreasing the operation and maintenance cost.
The hydraulic pipeline adopts two-level sealing of 24° cone and O ring, settling the common issue of leakage.
Durable blade and bucket teeth feature longer service life.
The easily worn pipeline is equipped with the protection bush, prolonging the service life.
