3 Axles Cargo Heavy Duty Semi Trailers With Side Board Max Loading 50t
Features of Sinotruk 3 Axles Heavy Duty Cargo Semi Trailers With Side Board Max.loading 50t
1. The frame made of high-strength steel plate that meets international advanced standards ensures the overall strength of the frame and improves the carrying capacity of the frame.
2. The beam adopts W-type through beam structure, which directly contacts the bottom plate, which improves the overall strength and reduces its own weight.
3. Four-section variable-section leaf spring made of high-elasticity and high-quality spring steel reduces the dead weight on the premise of ensuring strength and elasticity.
4. 385 / 60R22.5 or 425 / 65R22.5 wide-section single tire structure widely used abroad is optional. It has high elasticity and abrasion resistance, good adhesion and heat dissipation performance, which ensures good driving. stability.
5. Optional aluminum alloy rims can greatly reduce the vehicle's own weight. At the same time, it can effectively absorb the vibration from the road and improve the vehicle performance.
6. Multi-purpose, can transport both bulk cargo and container
7.Optional container lock
Technical specification of Sinotruk 3 Axles Heavy Duty Cargo Semi Trailers With Side Board Max.loading 50t
| Trailer Model | 3 Axle Cargo Semi Trailer |
| Overall Dimension(Lx W x H)(mm) | 12600*2500*1600 |
| Thickness(mm) | Bottom: 3mm, Side: 1.5mm |
| Curb Weight(KG) | 8000 |
| Total Weight(KG) | 50000 |
| Axle Brand | FUWA 13TON Axle |
| Axle Number | Three(customized) |
| Suspension system | Common Mechanical suspension |
| Steel Spring | leaf spring suspension |
| The material of Main beam | The height of the beam is 450/500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm. |
| Platform plate | 3mm Diamond plate |
| Side board | 3mm thickness, 600mm height |
| Container Twist Locker | 12 pieces |
| Tire Type | 12.00R20 |
| Tire quantity | 12+1 Spare |
| Traction Pin | 90mm |
| Water tank | 500L |
| Spare Wheel Bracket | 2 piece |
| Tool Box | 1 Standard |
| Landing Gear | JOST 28t, Mechanical type |
| Brake system | Dual Line braking system ,none ABS. |
| Brake air chamber | Two double and two single chamber |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| One set 6-core standard Cable. |
| Side Guard | Standard |
| Color | White(optional) |
About Qality Control
As a leading semi trailer manufacturer, we dedicated to quality control by ensuring quality in every step of the manufacturing prcess.Our quality assurance management includes:
1. A set of detailed procedures that covers all manufacturing processes.
2. Monitoring processes to ensure their effectiveness.
3. Keeping adequate records.
4. Checking output for defects,with appropriate corrective action wherever necessary.
5. Regular review of individual processes and the quality system itself for effectiveness.
6. Facilitating continuous improvement.
Packaging & Shipping
All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are three way can be choose, RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER, 40 HQ Container for the trailer and parts.
Product Tags:
|
|

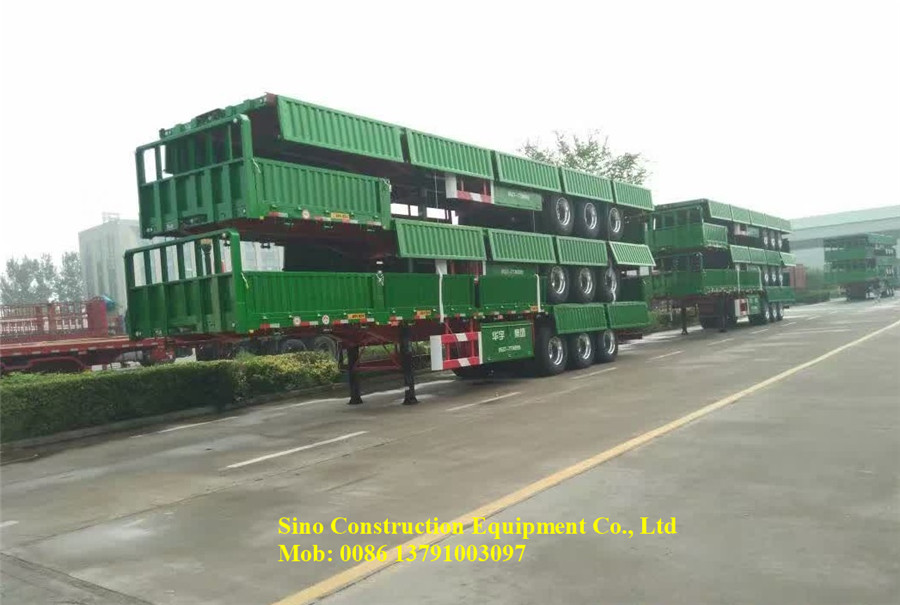

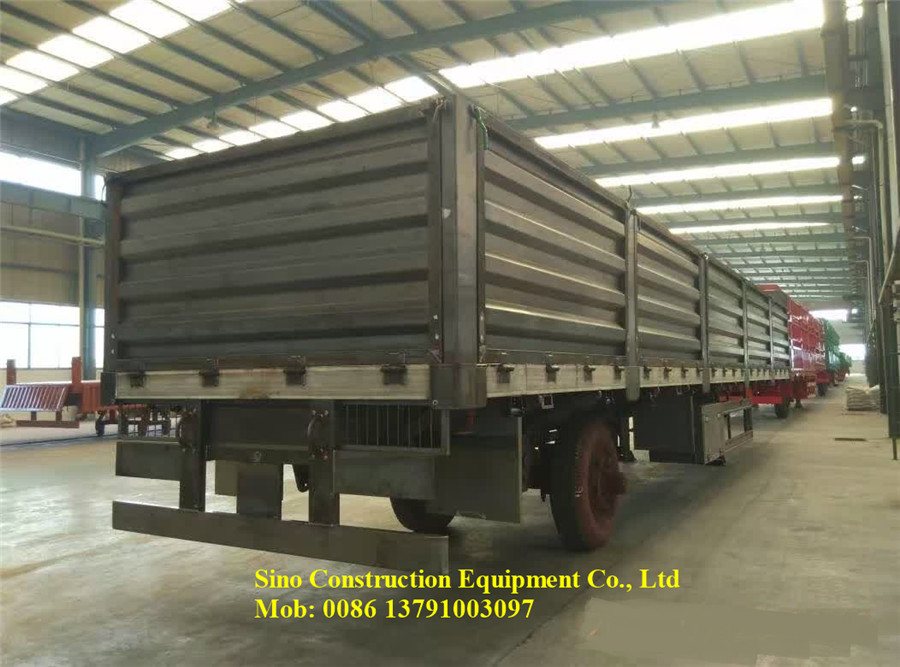

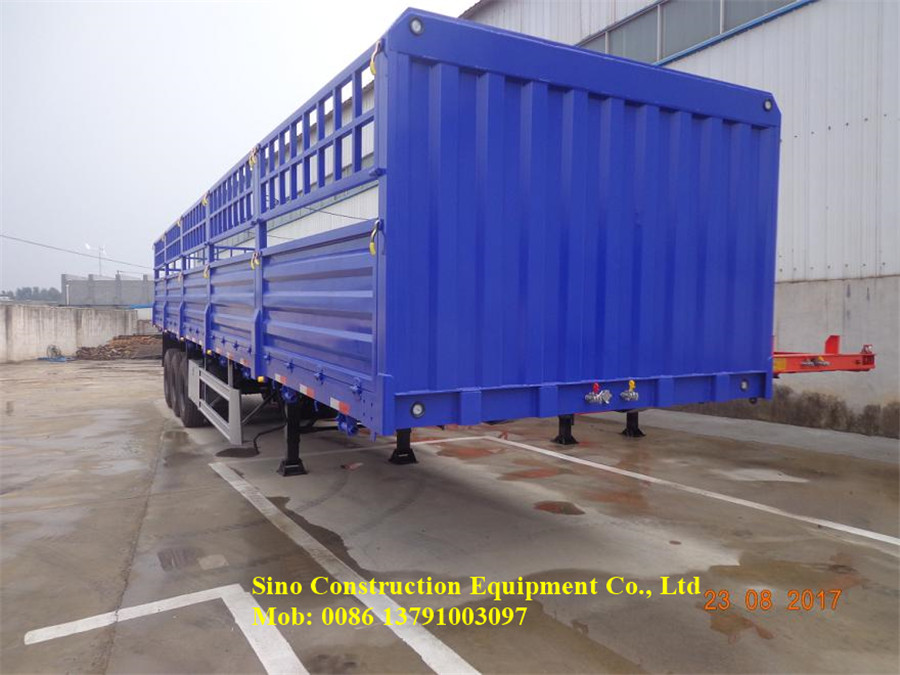

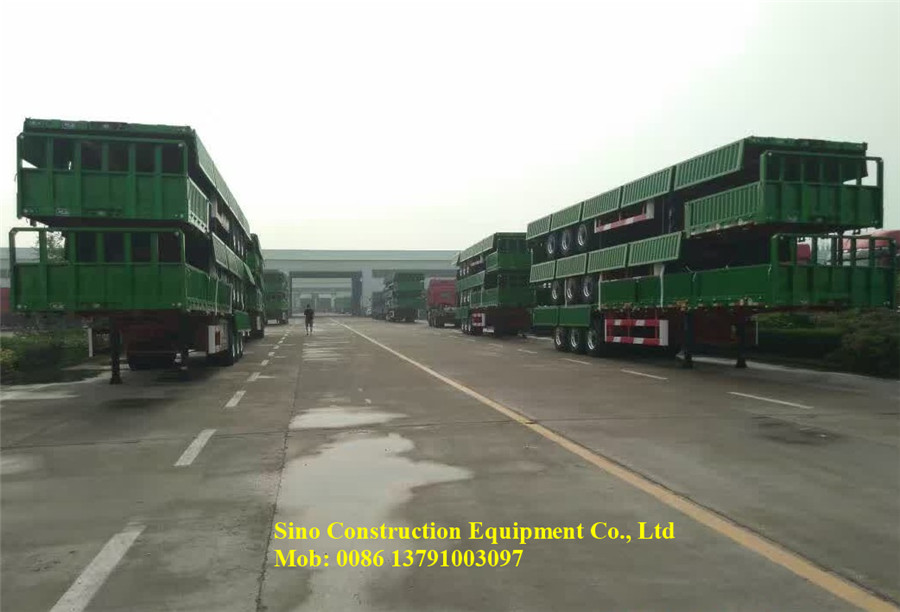

3 Axles Cargo Heavy Duty Semi Trailers With Side Board Max Loading 50t Images
|
