8x4 Special Purpose Truck Manual Transmission Type 25001 - 30000L Tank
Sinotruk Special Purpose Truck 8x4 Manual Transmission Type and 30000L Tank Volume Water Sprinkler Truck
Product Description
Special Purpose Truck 8x4 Water Sprinkler Truckis using on road clearing, wash tree, grass, road, construction of factories and mines and High altitude building rinse. With water, dust, spray, barrier rinse, water, drainage and emergency fire and other functions.
Main Specification of Special Purpose Truck 8x4 Water Sprinkler Truck
| Vehicle parameters |
| Vehicle Model | EHY5310GSSZ | Vehicle Brand | HUAYI |
| Overall dimensions | 11050×2500×3335mm | Curb weight | 12510kg |
| Tank dimensions | 7630×2260×1450mm | Tank volume | 25000L |
| Chassis parameters |
| Chassis model | ZZ1310N4267A | Chassis brand | SINOTRUK |
| Overall dimensions | 9850X2496X3115mm | Wheel base | 1800+4200+1350mm |
| Front/rear wheel track | 2022/2022/1830/1830mm | Front/rear suspension | 1500/1000mm |
| Approach/departure angle | 19/47° | Maximum speed | 75km/h |
| Chassis Manufacturer | China National Heavy Duty Truck Group Co.,Ltd |
| Cab | Configuration | HW76 cab, a row and a half deluxe cab(with sleeping berth),allowable 3 passengers, |
| Color | White, other color is optional |
| Engine | Model | DW615.47 |
| Emission | Euro 2 |
| Type | 6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine |
| Rated power | 371hp,rated power speed 2200rpm |
| Displacement | 9726ml |
| Max.torque | 1500N.m |
| Bore x stroke | 126x130mm |
| Manufacturer | China National Heavy Duty Truck Group Co.,Ltd |
| Tire | Size | 12.00R20 steel wire tire |
| Number | 12+1 nos |
| Clutch | φ430 diaphragm clutch |
| Front axle | HF9 |
| Rear axle | HC16 |
| Drive form | 8X4 |
| Suspension | Multi leaf springs |
| Rated voltage | 24V,DC |
| Transmissions | gearbox HW19710,10 speed forward 2 reverse. |
| Steering device | Power assisted steering, steering machine(domestic ZF technology) |
| Steering wheel | Left hand drive |
| If there is a slight change in the chassis parameters above,please take the actual product as the standard |
| Water tank structure parameters |
| Tank dimensions | 8250×2350×1500mm | Tank volume | 25000L |
| Tank material | Carbon steel | Tank thickness | 6mm |
| Nozzle sprinkling width | ≥14m | Range of water cannon | ≥28m |
| Suction height | ≥7m | Color and Logo | Optional |
| Standard configuration | Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder. |
| Selective configuration | Stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights |
| Extended model | water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,and etc. |
| | | | | |

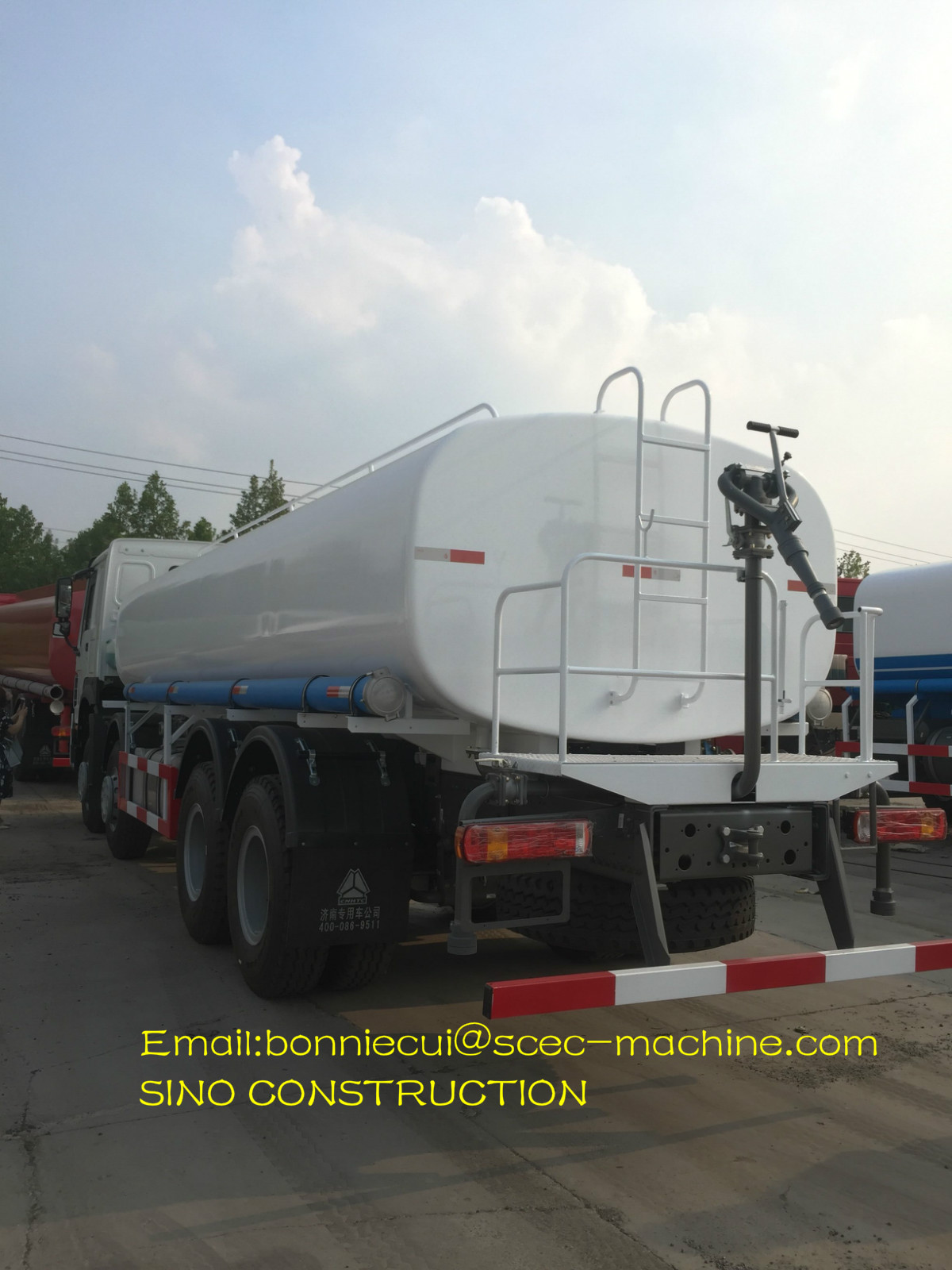

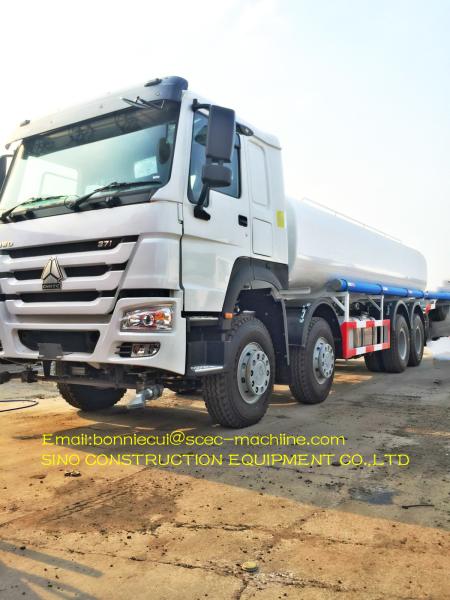

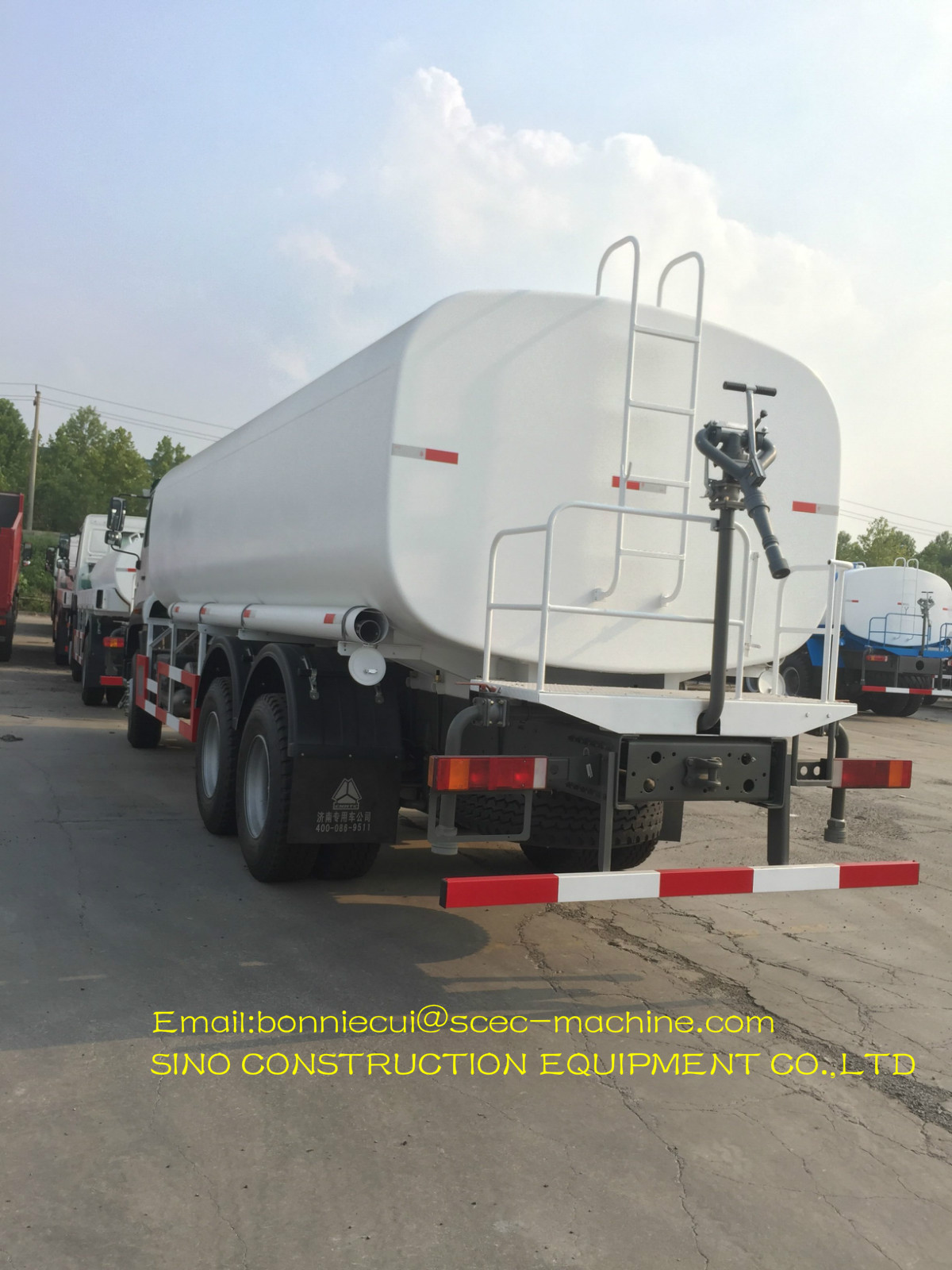

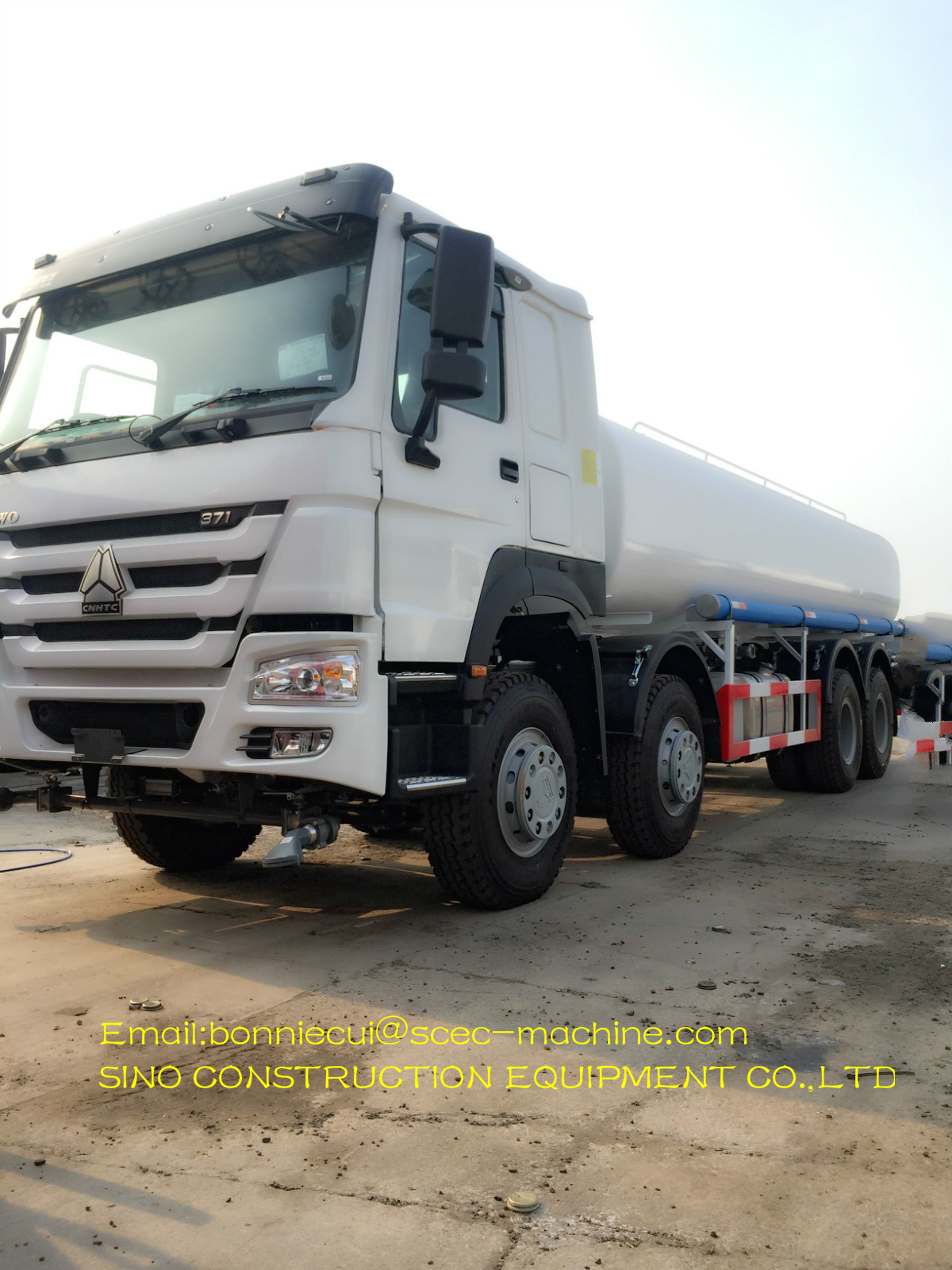

Photo show of Special Purpose Truck 8x4 Water Sprinkler Truck
Packaging & Shipping
Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck , we will spray antirust paint with free. Usually we will put the truck in cabin of the ship.
FAQ
Q1. How long have you been in this business?
A: We are specialized in this field over 10 years.
Q2. How many brands you can supply of the trucks?
A: We are cooperating with the famous brand in China ,such as Dongfeng , China FAW,foton , sinoruck , shacman , Iveco , hino ,camc etc.
Q3. How can you ensure the product quality?
A: a.strictly materials testing before production.
b. mature welding and sealing technology
c. high pressure water testing, air testing,detecting testing etc after tank formed.
Q4 .Cooperation items:
A: Order confirm: After confirming all the requirements ,PI should be signed with our company official seal.
Spare parts could be supplied by cost price.
