Special Purpose Truck Steel Crawler 200m Portable hydraulic Water Well Drilling Rig
Drilling rig with AC(Air Compressor) method is capable of drilling upto 203mm (8 inch) diameter holes for
pore-forming purposes to a depth of 200 meters
The parameter of Special Purpose Truck Steel Crawler 200m Portable hydraulic Water Well Drilling Rig
| Maximum drilling depth | 200m |
| Bore diameter | 90-315mm |
| Working wind pressure | 1.7-3.0Mpa |
| Air consumption | 17-35m3/min |
| Drill rod length | 3m |
| Drill rod diameter | 76/89mm |
| axial pressure | 4T |
| lifting force | 14T |
| Hoisting speed | 2.5m/min |
| Fltting speed | 0.5-5m/min |
| Fast hoisting speed | 18m/min |
| Fast Fltting speed | 35m/min |
| Swing torque | 4500-6500Nm |
| Swing speed | 50-70r/min |
| Hoisting force of winch | 1.5T |
| High hydraulic leg stroke | 1.5m |
| The penetration efficiency | 10-35m/h |
| Travelling speed | 2.0Km/h |
| Gradeability | 30° |
| Weight | 5.4T |
| Dimensions(mm) | 3.9M×1.7M×2.15M |
| Engine | 72KW YUCHAI 4-cylinder |

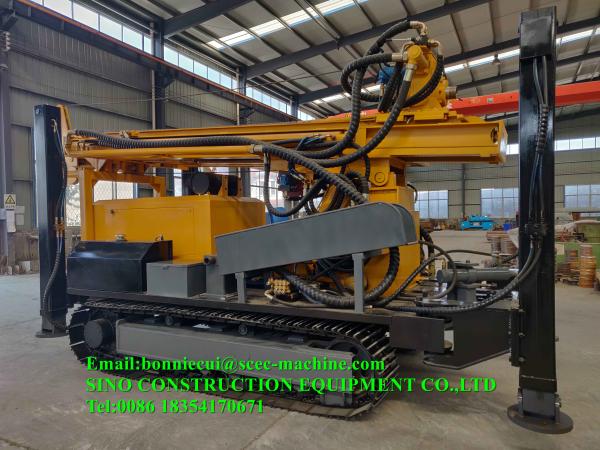

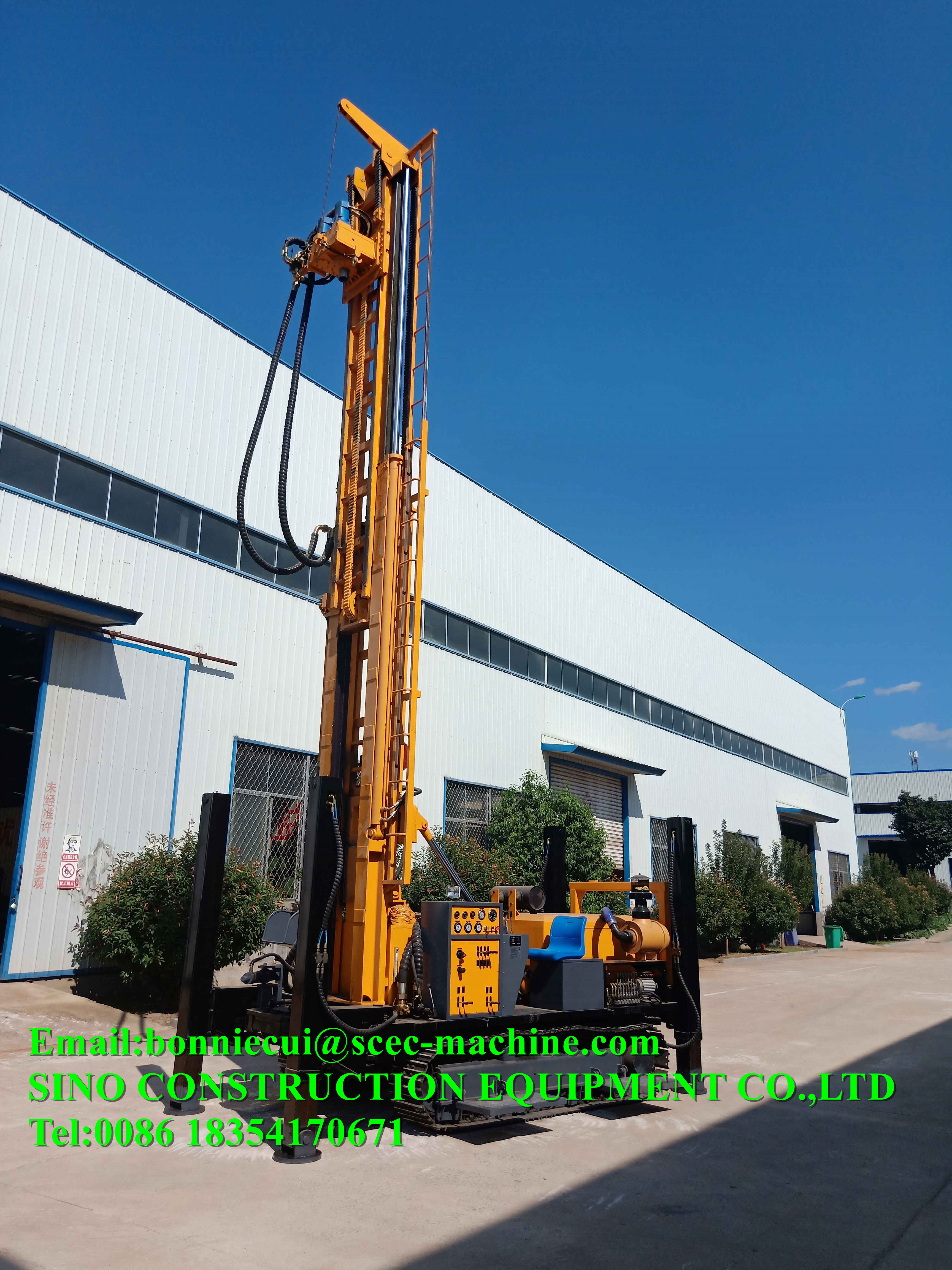

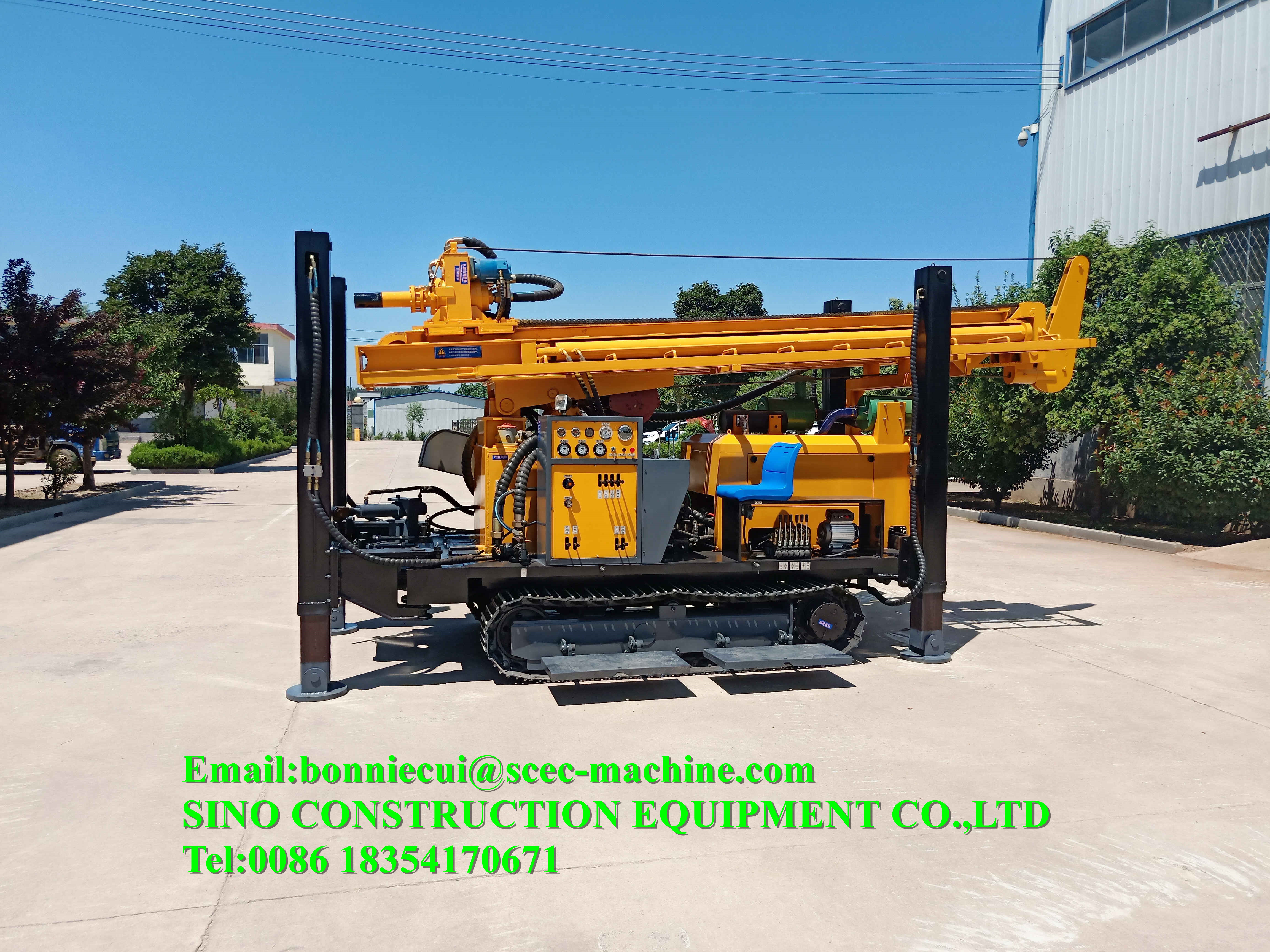

The photo of Special Purpose Truck Steel Crawler 200m Portable hydraulic Water Well Drilling Rig
Product Advantages of Special Purpose Truck Steel Crawler 200m Portable hydraulic Water Well Drilling Rig
1. The engine uses YUCHAI 72 KW turbocharged engine;
2. Walking Type: crawler mounted, trailer mounted for choice.
3. Hydraulic oil pump: Parallel gearbox design separates the oil pump unit, the power
supply is adequately distributed, the hydraulic system is uniquely designed, and the maintenance cost is small;
4. Rotary head device: gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
5. Drilling machine chassis: professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads;
6. Lifting force: design composite tower, 3.4m long stroke, double cylinder lift capacity 14 ton .
7. Each rig is equipped with a relief valve to raise the boom to protect the cylinder and ensure work safety;
8. Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe last longer.

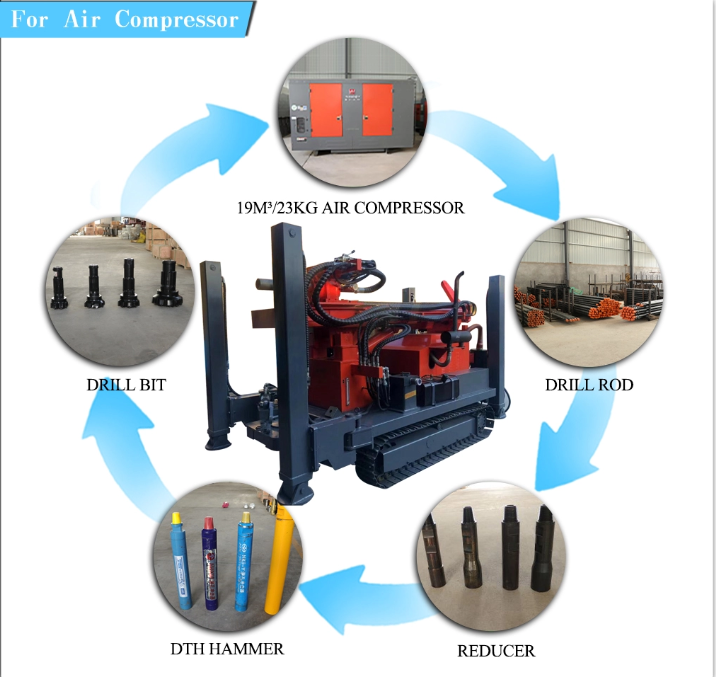

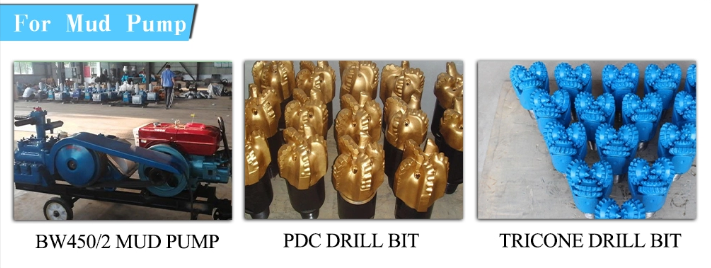

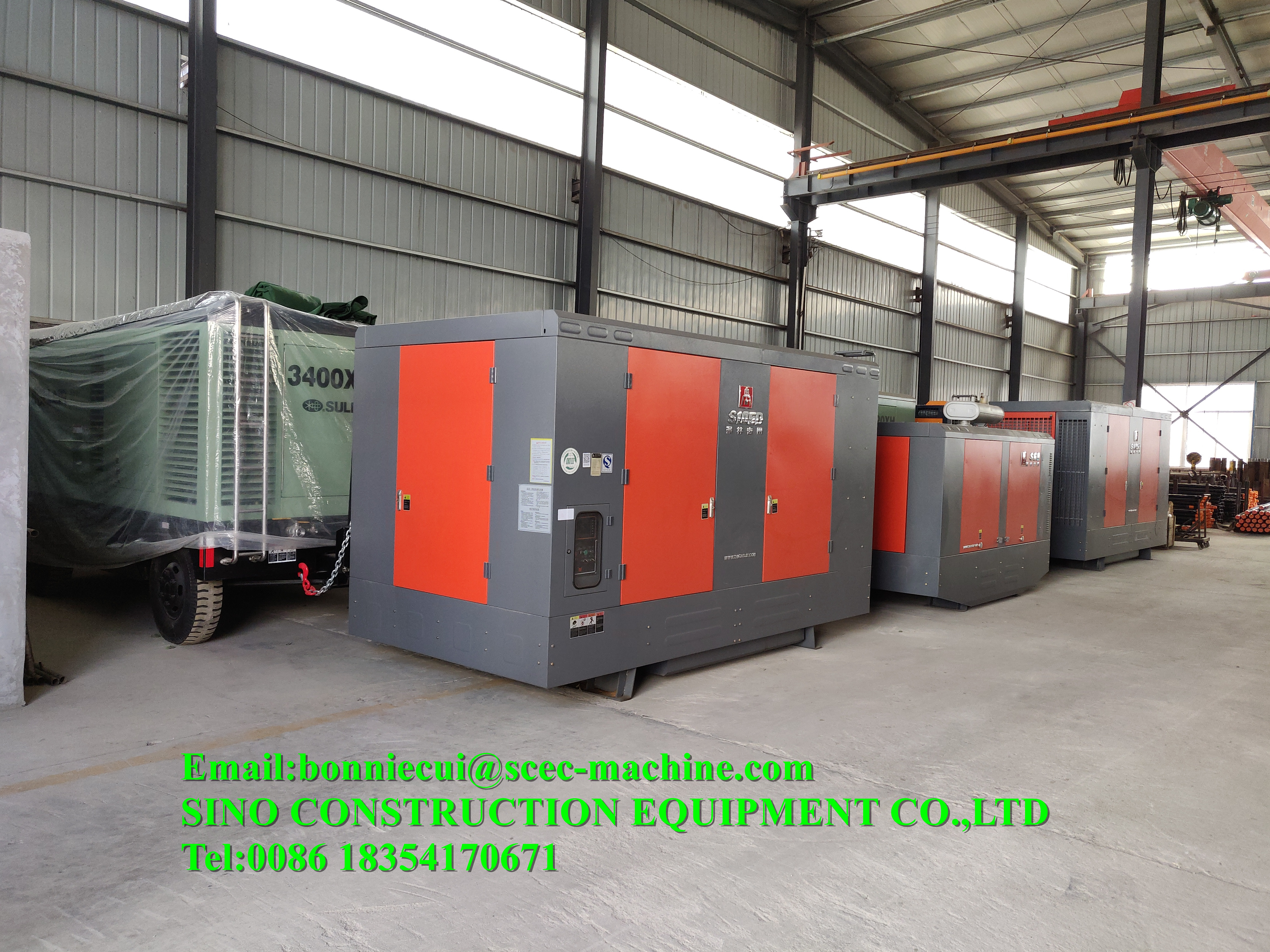

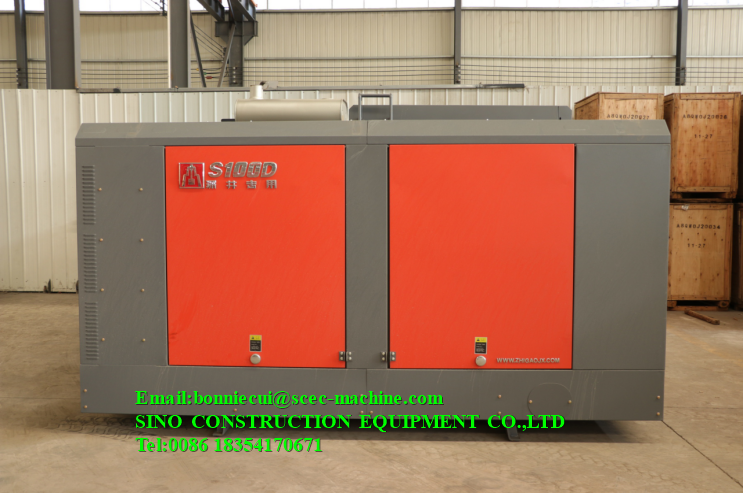

Accessories(Two Drill Methods) of Special Purpose Truck Steel Crawler 200m Portable hydraulic Water Well Drilling Rig

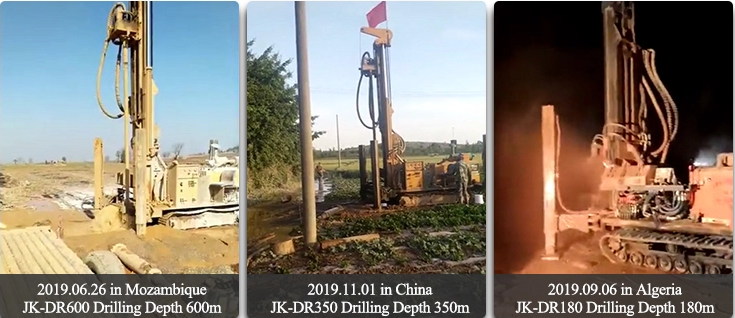

Application of Special Purpose Truck Steel Crawler 200m Portable hydraulic Water Well Drilling Rig

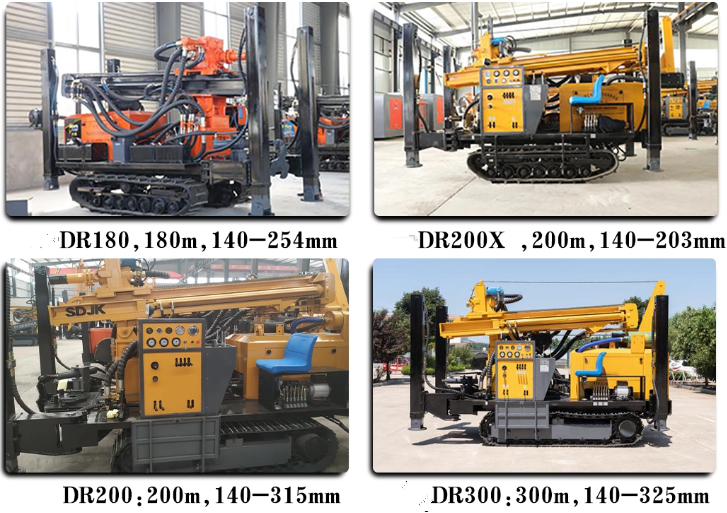

Related Products of Special Purpose Truck Steel Crawler 200m Portable hydraulic Water Well Drilling Rig

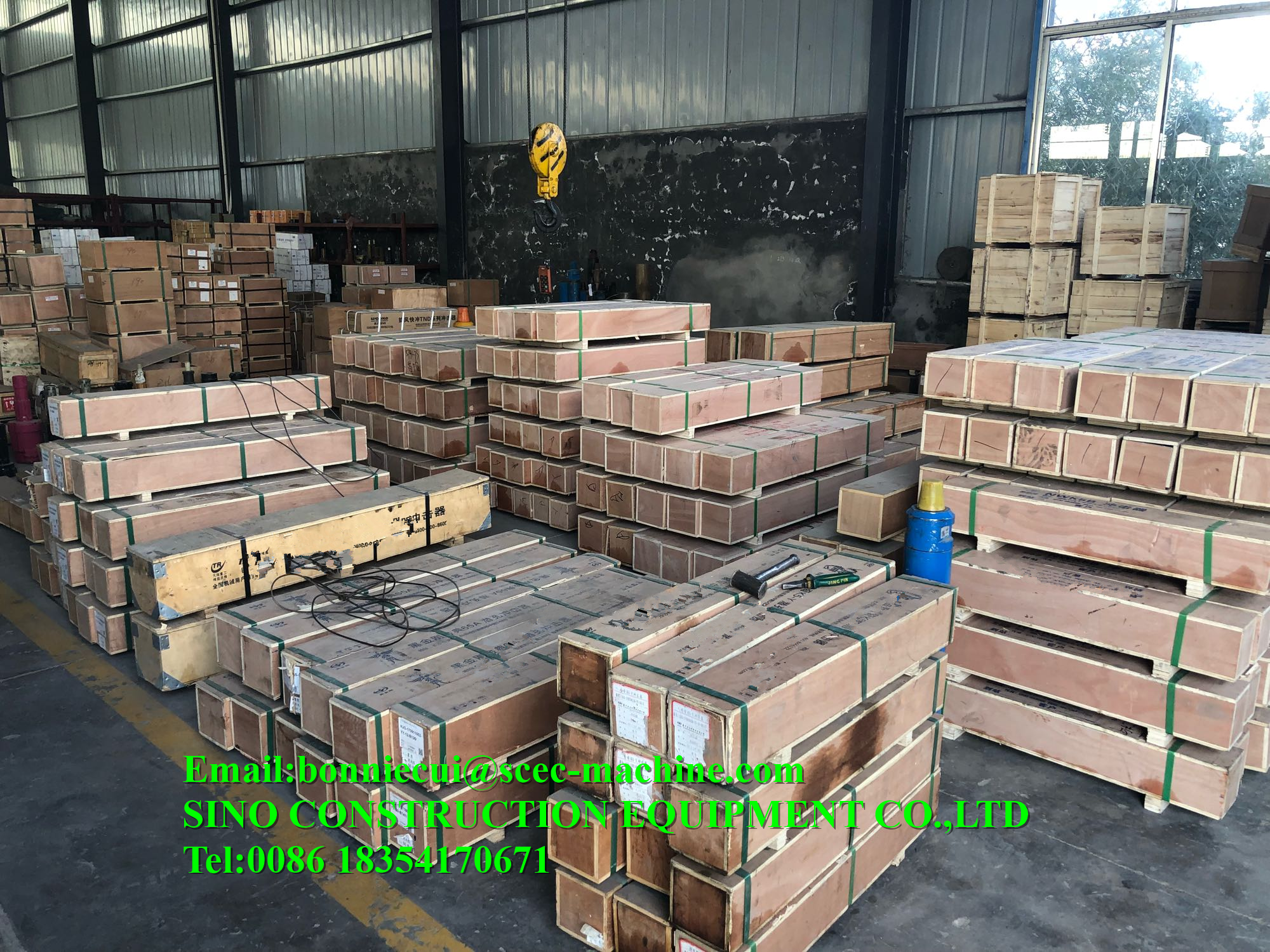

Packing&Delivery
About us
Our company was established in 2003 and is located in Jingshi Road, Huaiyin District, Jinan City. The transportation is convenient.
Our business scope includes all kinds of heavy road construction machinery, building machinery, heavy logistics vehicles and special vehicles. Including road rollers, graders, wheel loaders, excavators, etc. And tractor trucks, dump trucks, cargo trucks, semi-trailers, cement mixers and large, medium and small brick machine production lines, etc. Since its establishment 17 years ago, we have won wide acclaim from customers at home and abroad for our high-quality service concept, honest business attitude, and high-quality mechanical products.
At present, we focus on large-scale earthwork, construction engineering projects companies and large-scale logistics centers, with providing customers with high-quality machinery and vehicles.
Jinan is the cradle of Chinese heavy vehicles and machinery. Relying on Jinan's thick heavy equipment technology research and development history and convenient transportation, we maintain good long-term strategic cooperation with Sinotruk and Jiangsu XCMG. Become the vanguard of China's heavy machinery export and overseas market development.
Our company's production line is located in Zhangqiu District, Jinan City, Shandong Province. The transportation is convenient.
At present, our company has more than 500 employees. Among them, there are more than 50 persons in technical R & D teams, most of them have graduate degree or above. Marketing department have more than 30 people. Has extensive sales and service experience. Provide customers with one-stop product consultation, purchase and after-sales service.
We have more than 10 years of overseas export experience. The volume of exports increases every year. Mainly exported to African countries like Ethiopia, Djibouti, Kenya, Tanzania, Sudan, Chad, Angola, Burkina Faso, Uganda, Cameroon, Zambia, Algeria, Mozambique, Botswana, etc .; South Asia, Southeast Asia, like Pakistan, Bangladesh, Myanmar, Thailand, Philippines, Laos, etc .; Latin America, like Colombia, Guyana, Peru, Chile, Uruguay, Bolivia, etc.
Professional technical team and rich experience, treat customers as friends sincerely, and provide strong support and services for customers is our common business philosophy. Customers are welcome to write or consult and cooperate.
