Special Purpose Truck Rotary Drilling Rig YCR50 With 1200mm Drilling Diameter and 23m Depth
Performance of Special Purpose Truck Rotary Drilling Rig YCR50 With 1200mm Drilling Diameter and 23m Depth
YCR50 small rotary drilling rig is specially developed for rural infrastructure construction, dilapidated house reconstruction projects, district and county real estate projects, municipal construction, railway reconstruction construction, transmission and transformation tower construction, mobile base station construction and other operating conditions. It is equipped with imported power hydraulics. System assembly; reliable and stable performance, efficient and fuel-efficient construction, compact and safe structure, convenient and flexible transition, good stratum adaptability, and excellent pile quality.
XR series Rotary Drilling Rig are suitable construction machinery for the construction of the hole, mainly suitable for sand, cohesive soil, silty soil and other soil construction. The drilling rigs generally use hydraulic crawler telescopic chassis, self-landing folding mast, telescopic drill pipe, with vertical degree of automatic detection adjustment and hole digital display, etc. Whole machine operation is generally used hydraulic pilot control and load sensing, easy and comfortable to operate. The main and vice winches can meet different requests of construction sites. This type of drilling rig equips with different drilling tools not only for dry (short spiral), wet (rotary bucket) and rock (core drill) into the hole operation, but also for a long helix drill, underground wall grab, vibration pile hammer, etc. Achieving a variety of functions, mainly for municipal construction, highway bridges, industrial and civil construction, underground wall, water conservancy, anti-seepage slope and other basic construction works.
The specification of Special Purpose Truck Rotary Drilling Rig YCR50 With 1200mm Drilling Diameter and 23m Depth
| Project | Unit | Parameter |
| Max.Drilling Diameter | | |
| Uncased | (mm) | φ2000 |
| Cased | (mm) | φ1700 |
| Max.Drilling Depth | (m) | 80 |
| Dimension | | |
| Working condition L *W * H | (mm) | 10260* 4400* 22120 |
| Transportation condition L * W * H | (mm) | 16355* 3500* 3510 |
| Overall Drilling Weig | (t) | 70 |
| Engine | | |
| Model | - | QSL-325 |
| Rated Power | (kW) | 242/2100 |
| Hydraulic System | | |
| Working pressure | (MPa) | 35 |
| Rotary Drive | | |
| Max. output torque | (kN.m) | 220 |
| Rotary speed | (r/min) | 7~22 |
| Spin off speed | (r/min) | 90 |
| Pull-Down Cylinder | | |
| Max.pull-down piston push | (kN) | 200 |
| Max.pull-down piston pull | (kN) | 200 |
| Max.pull-down piston stroke | (mm) | 5000 |
| Crowd Winch | | |
| Max.pull-down piston push | (kN) | - |
| Max.pull-down piston pull | (kN) | - |
| Max. pull-down piston stroke | (mm) | - |
| Main Winch | | |
| Max.pulling force | (kN) | 230 |
| Max. single-rope speed | (m/min) | 70 |
| Diameter of the steel wire rope | (mm) | 30 |
| Auxiliary Winch | | |
| Max. Pulling force | (kN) | 80 |
| Max. single-rope speed | (m/min) | 60 |
| Diameter of the steel wire rope | (mm) | 20 |
| Drilling mast | | |
| Left/rig inclination of mast | (°) | 42464 |
| Front inclination of mast | (°) | 5 |
| Rotary table slewing angle | (°) | 360 |
| Traveling | | |
| Max. traveling speed | (km/h) | 1.5 |
| Max.grade ability | (%) | 35 |

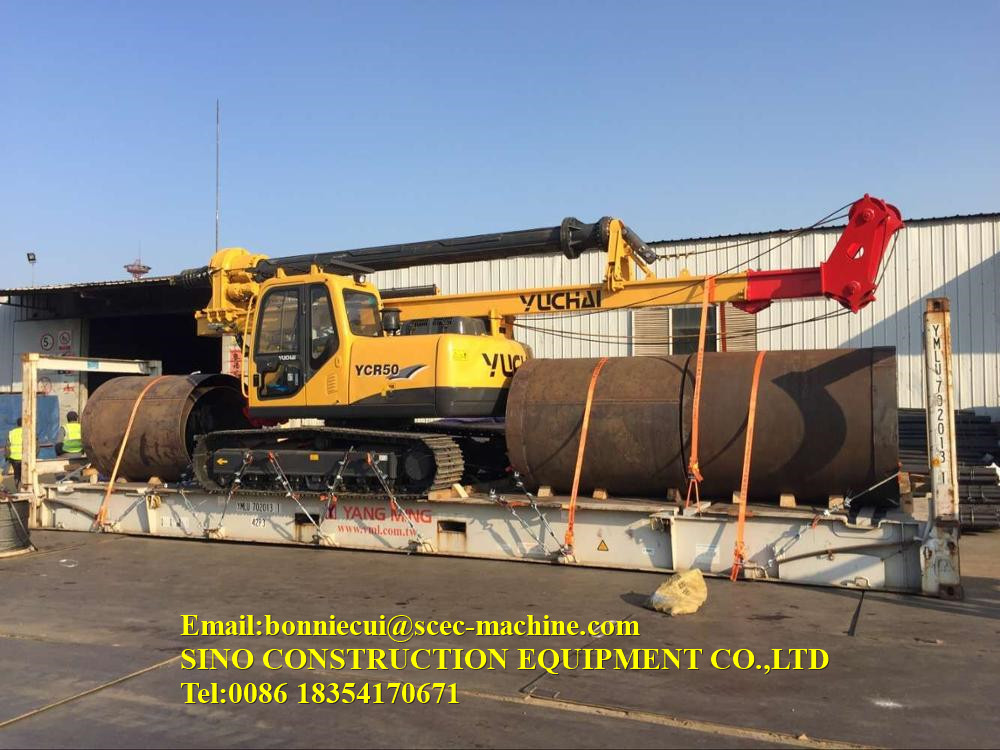

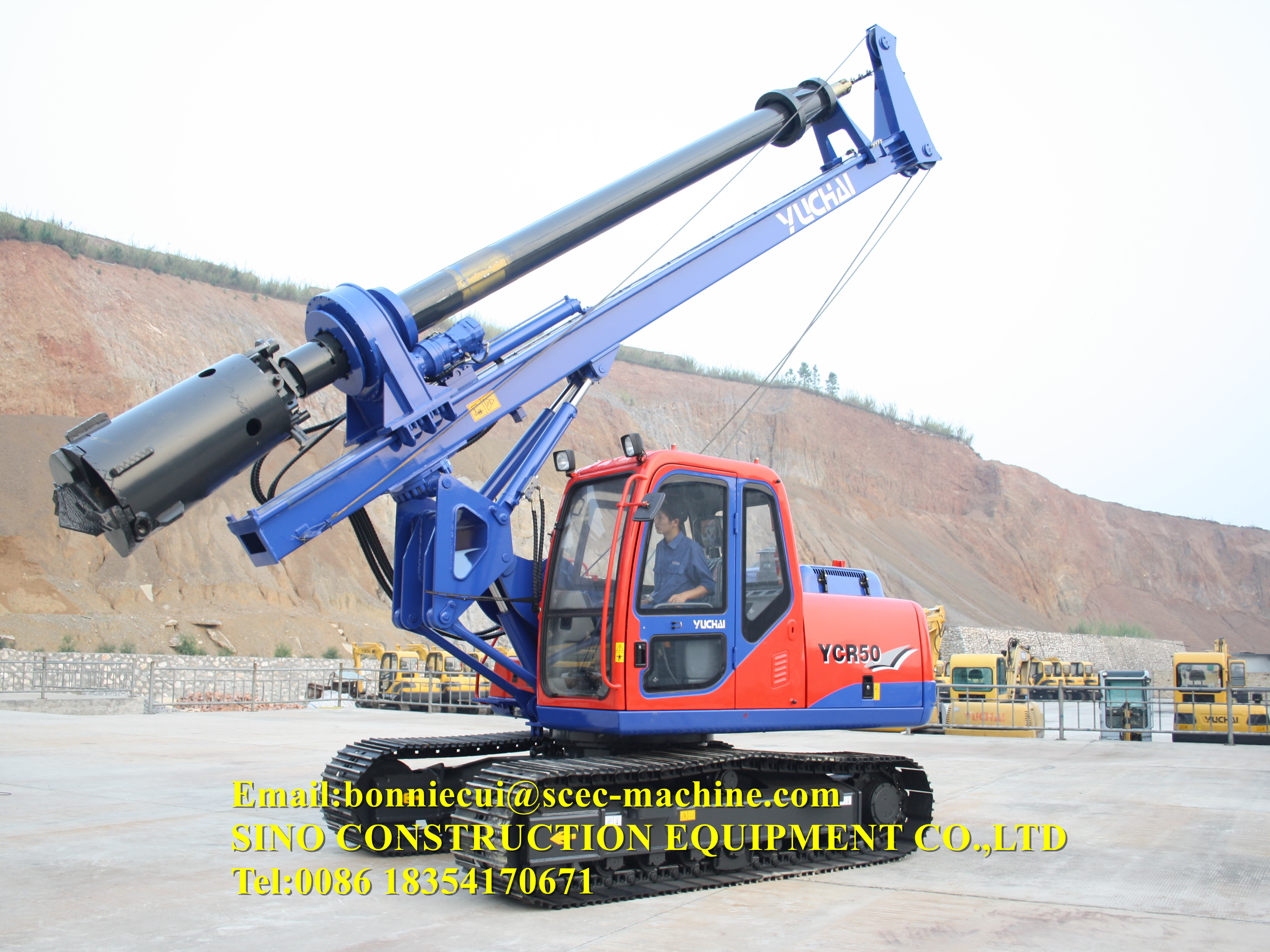

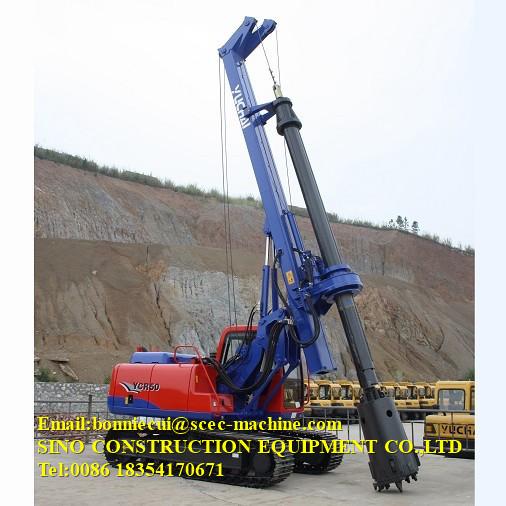

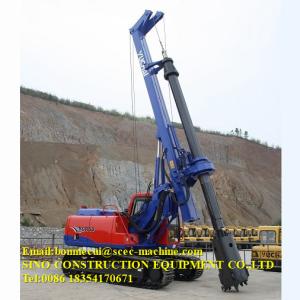

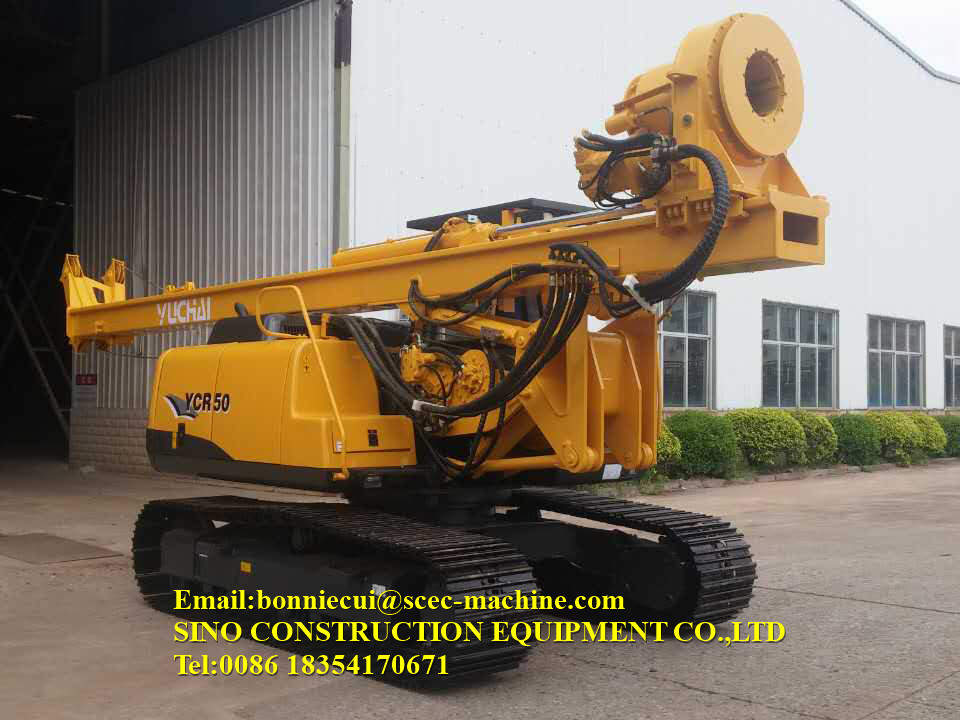

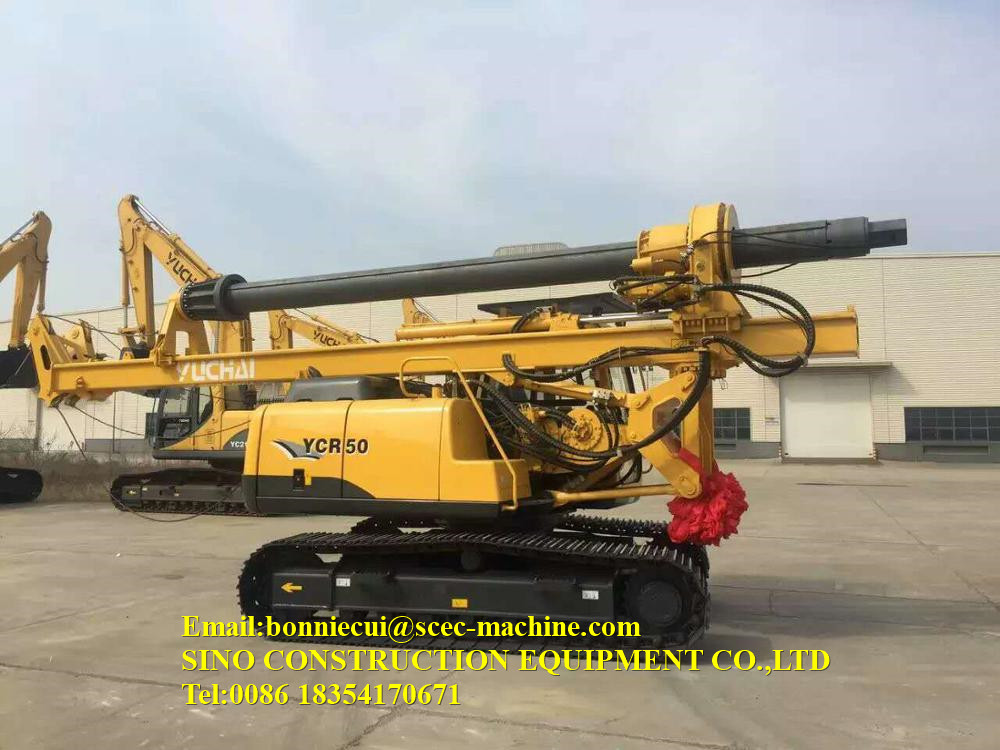

The photo of Special Purpose Truck Rotary Drilling Rig YCR50 With 1200mm Drilling Diameter and 23m Depth
