8000L Vacuum Sewage Suction Tanker Truck Engine 190hp Euro III Cylindrical Tank

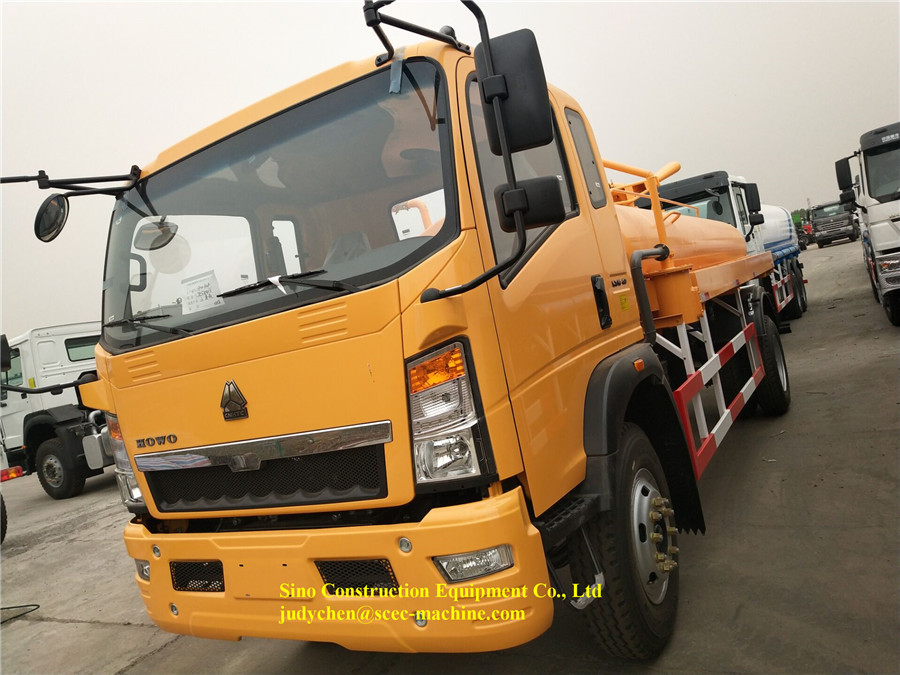

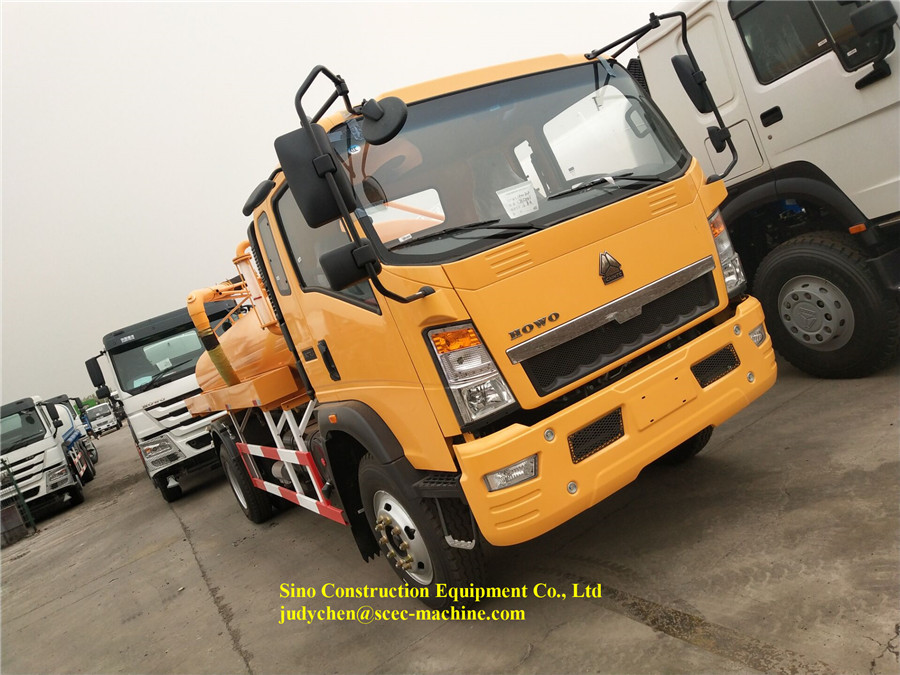

SINOTRUK HOWO 4x2 8000L Vacuum Sewage Suction Tanker Truck Engine 160hp Euro III
Introduction of SINOTRUK HOWO 4x2 8000L Vacuum Sewage Suction Tanker Truck
Chassis configuration:
The heavy duty cleaning truck of Sinotruk adopts China National Heavy Duty Truck HOWO chassis, 130 horsepower national five medium-cooled turbocharged engine in Yunnan, Wanliyang six-speed gearbox, 2.7 tons in front axle, 5 tons in rear axle, thick leaf spring Double girder, 7.50 steel tires, ABS, air brake, with central control, electric doors and windows, aluminum alloy fuel tank, 2080 single row cab.
Upload configuration:
The heavy duty truck for cleaning and absorbing dirt is a special vehicle that integrates cleaning and absorbing dirt into two facilities including a suction pump, a suction tank, and a suction pipe in addition to the high-pressure cleaning truck. It consists of two pumps (high pressure cleaning pump, vacuum suction pump) and two casing circuit systems.
The configuration of the cleaning part of the heavy truck cleaning and suction truck:
The cleaning tank is made of 4mm WISCO carbon steel, with a volume of 2 squares, with a water pipe, Tianjin Tongjie high-pressure cleaning pump is installed, the pressure is 21Mpa, the flow rate is 135L / min, with a 60-meter inner diameter 19mm cleaning steel wire hose. Ten different-caliber alloys are standard. Nozzle, the coiling force is 1800N, the inner diameter of the hose is 19mm, the coiling speed is 0-25m / min, the pushing force is greater than 180N, and it can pass through the water pipe and sewer pipe with a diameter of 10-80 cm.

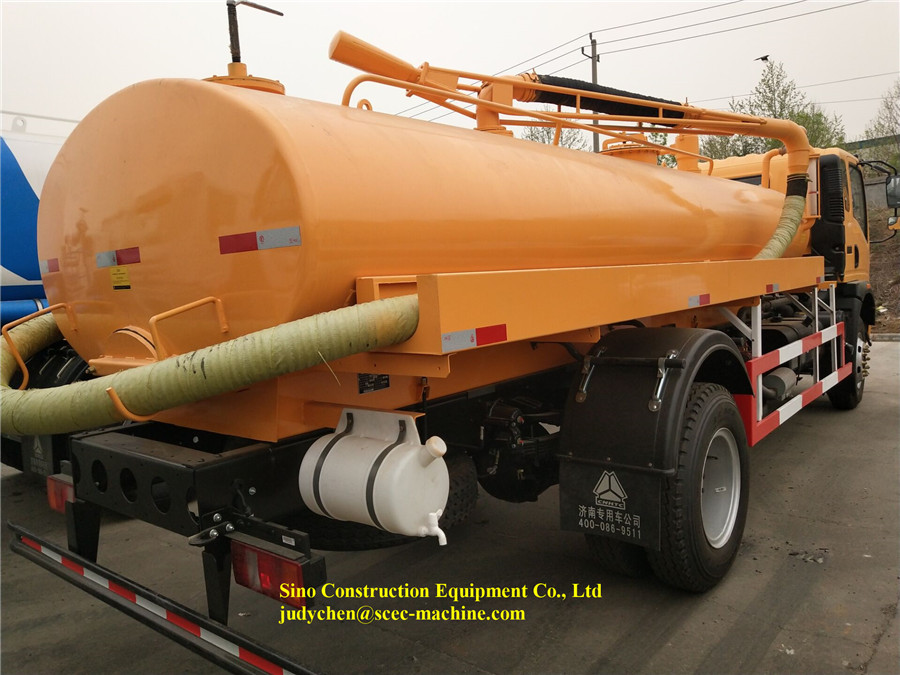

Sewage suction tank part configuration:
The suction tank is made of 5mm WISCO carbon steel, with a volume of 4 squares, with a viewing window, an anti-overflow valve, SK-6 water ring vacuum pump (optional oil pump), with an 8-meter dirt-absorbing steel wire rubber tube. 150mm blowdown ball valve, one 100mm diameter inlet, tank body with hydraulic lifting system, hydraulic opening and closing of the rear cover, with self-unloading function, can be pressurized and forced exhaust. The tank body is provided with a liner to prevent deformation of the suction suction tank body.
Specification of SINOTRUK HOWO 4x2 8000L Vacuum Sewage Suction Tanker Truck
| Specification of the sewage suction truck |
| Items | Descriptions | Specifications and Types |
| General | Truck Name | Sewage suction truck |
| Drive Type | 4*2 |
| Gross Vehicle Weight(kg) | 16000 |
| Curb Weight (kg) | 6805 |
| Overall Dimensions L*W*H(mm) | 8300*2490*3400 |
| Engine | Engine Model | YC6J190-46 |
| Engine Brand | YUCHAI |
| Fuel Type | Diesel |
| Power | 190HP |
| Emission Standard | Euro II |
| Displacement(ml) | 6494 |
| Engine Type | 6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling |
| Chassis | Chassis Brand | SINOTRUK |
| Front/Rear Axle Load(KG) | 6000/10000 |
| Tire No. | 6 |
| Tire Specification | 10.00-20 |
| Wheelbase (mm) | 4500 |
| Axle No. | 2 |

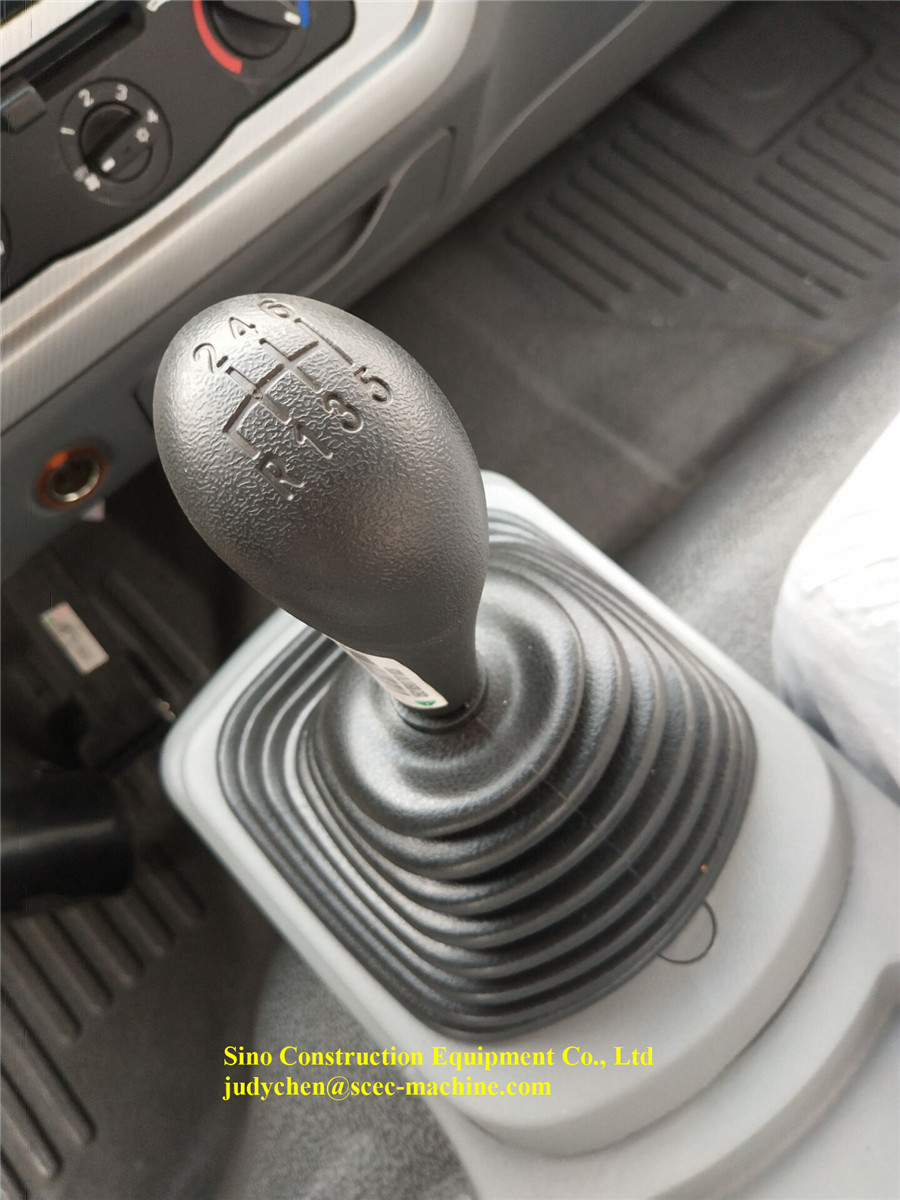

| Gear Box | 6 speed forward with 1 reverse, manual |
| Steering Wheel | Left hand drive with power-assisted |
| Brake | Air brake |
| Radiator | Suitable for tropical climate |
| Sucking System | Tank Volume(L) | 8000 |
| Tank shape | Cylindrical |
| Tank Material | 6 mm thick carbon steel |
| Suction Depth(m) | More than 6 meter |
| Tank Tipping angle(°) | More than 45 |
| Rear door | Open and closed by hydraulic cylinders |
FAQ:
1.Q:How about the warranty?
A:One year
2.Q:Do you have ISO certificate ?
A:Yes , we have,pls contact us to get our certifications.
3.Q:How about the delivery time?
A: It depends on the style of truck ,normally around 30 working days
4. Q:How about shipping ?
A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .
5. Q: How do you control the quality of product?
A:our workers are well trained. Our very product under goes a scrutinizing inspection process.
6. Q: How about your product After-sales service system?
A:Our main export country have accepted after-sales service,some of country used the third department service.
7.Q: Do you accept Custom orders? What’s is your MOQ order?
A:Yes, we do, our MOQ is 1 set.
8.Q: What’s the payment terms?
A:By T/T or L/C at sight ,Western Union
