Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip Seal Truck
Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip Sealer Truck Asphalt Tank 9m3
Technical specification of Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip sealer Truck
| Chassis model | ZZ1317N4667A |
| Type | 8x4, RHD&LHD |
| Cab | HW76, one sleeper, A/C, Standard |
| Gearbox | HW19710, 10 speed forward&2 speed reverse |
| Engine | WD615.47, 371hp, Euro III |
| Total mass | 31000kg |
| Curb weight | 11170kg |
| Wheelbase | 1950+4600+1400,1950+4625+1350mm |
| Tire specifications | 11.00-20 18PR,11.00R20 18PR,12.00-20 16PR,12.00R20 16PR,315/80R22.5 16PR |
| Front overhang | 1540/2495,1540/2520mm |
| Max. speed | 101km/h |
| Working part parameter |
| Dimensions (mm) | 11990x 2500x3750 |
| Total weight (kg) | 31000 |
| Asphalt tank rated capacity (3) | 9 |
| Stone silo full capacity (m3) | 14 |
| Stone size (mm) | 3-25 |
| Spreading width (m) | ≤4 |
| Asphalt spraying amount (L / m) | 0.2-3.0 |
| Emission | Euro III |
Highlights of Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip sealer Truck
1. Imported large-power asphalt pump, one-control one-full automatic control system, heat-conducting oil is heated to the whole system of nozzle.
2. The whole system has automatic and manual dual control, which is safe and efficient. Specially-designed side nozzles solve the problem of no overlap on both sides of the asphalt spraying. The imported generator set is 5.5KW and it supplies 500W to the burner. The mains (220W) can be used as the heat transfer oil pump The motor provides power.
3. The unique starting strong spray control technology guarantees zero starting spraying of asphalt.
4, using streamlined hopper and humane ladder design, simple structure, easy to use.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Product Tags:
|
|

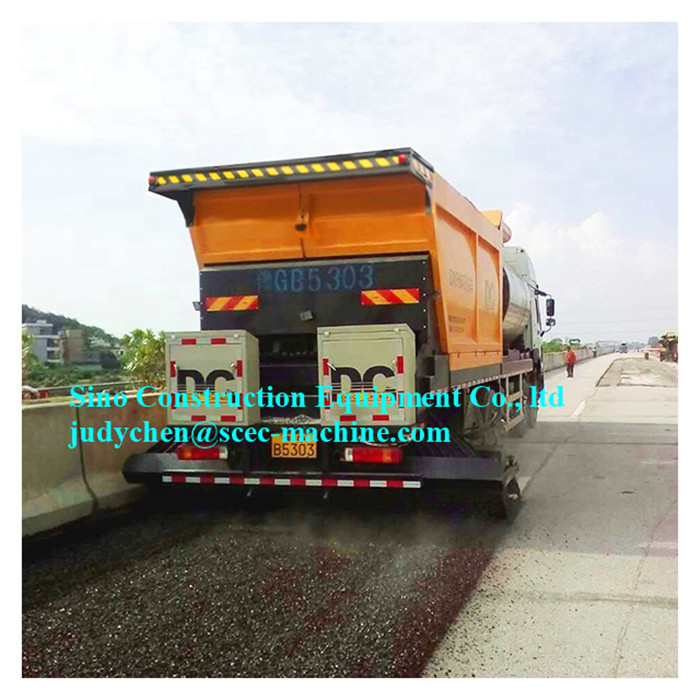

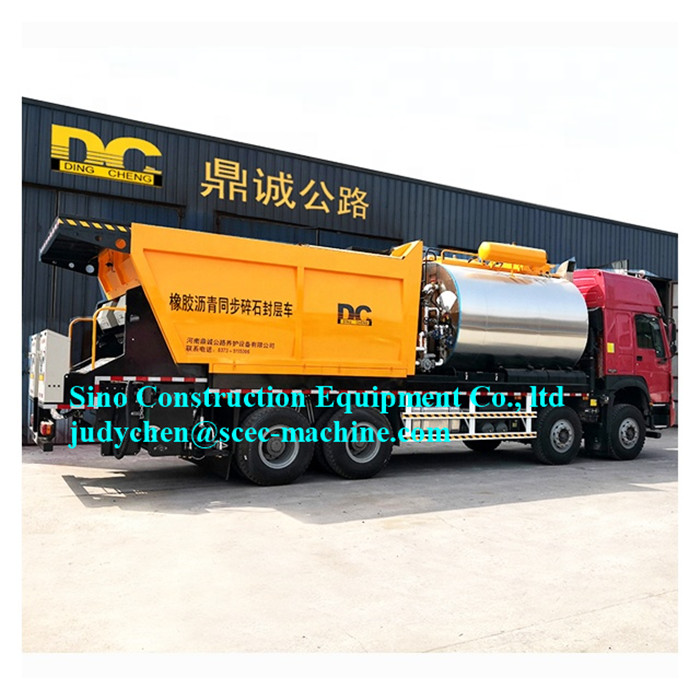

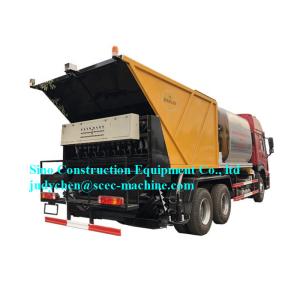

Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip Seal Truck Images
|
